Product overview
Key Benefits
Description

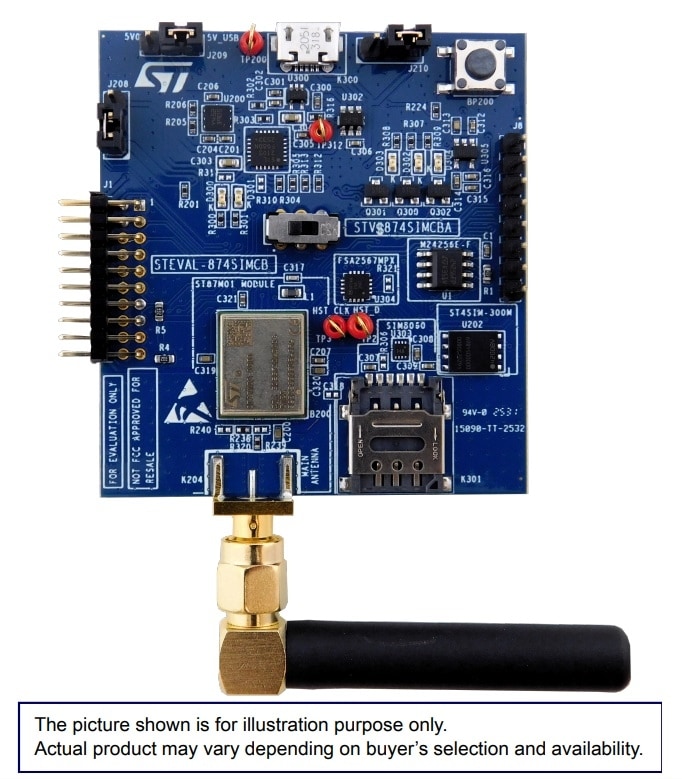

The STEVAL-874SIMCB expansion board adds NB-IoT connectivity to evaluation boards featuring the STMod+ expansion connector. It integrates the ST87M01 NB-IoT module, which supports LTE category NB2, release 15.
The ST4SIM-300M is ST’s eSIM compliant with the GSMA SGP.32 specification, enabling remote switching of telecom operators.
This expansion board must be used with the supplied antenna and is compatible with all ST Discovery kits featuring an STMod+ connector, such as the B-U585I-IOT02A. It is also compatible with any evaluation board supporting the STMod+ standard.
Together with any compatible evaluation board, the STEVAL-874SIMCB provides an ideal development platform for remote SIM provisioning solutions over NBIOT technology.
-
All features
- ST4SIM-300M expansion for evaluation boards hosting the STMod+ connector
- ST4SIM-300M compliant to the GSMA SGP.32 eSIM for IoT
- Embedded ST87M01 module:
- Ultracompact, low-power, certified LTE Cat NB2 Release15 NB-IoT module
- Worldwide regional band capability
- GCF certified bands: B1, B3, B5, B8, B20, B28
- RED and RED-DA certified
- Supports SGP.32 remote SIM provisioning
- Switchable SIM interface: eSIM and microsim
- Modem firmware upgradeable via dedicated micro-B USB connector
- UART interface supporting AT command set
- Pulse SMA antenna supporting frequency ranges: 850, 900 MHz; 1.8, 1.9, 2.1 GHz
