  • The use of high power LEDs in lighting applications is becoming increasingly popular due to rapid improvements in lighting efficiency, longer life, higher reliability and overall cost effectiveness. Dimming funtions are more easily implemented in LEDs, and they are more robust and offer wider design flexibility compared to other light sources.

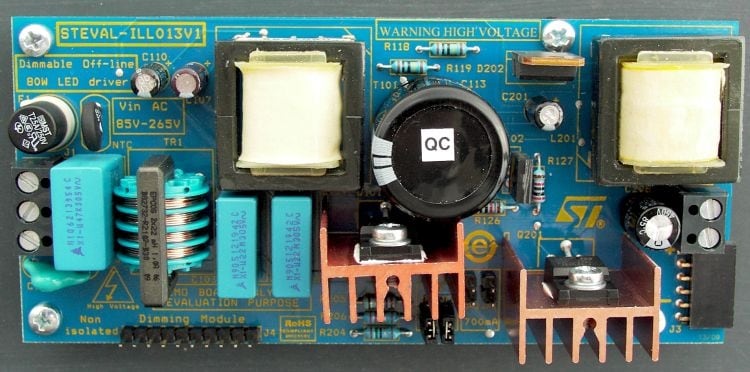

    The STEVAL-ILL013V1 demonstration board is an 80 W offline dimmable LED driver with high power factor (PF) intended for 350 mA, 700 mA and 1 A LEDs.
    The converter is designed as a constant current source to achieve the best lighting performance from the LEDs, and can be used for lighting applications from low power, low voltage to high power, high voltage. This allows designers to cover a wide range of different LED systems using a single topology.
    Additionally, in lighting applications where the input active power is higher than 25 W and a high power factor is required, the high PF converter can be connected as the first stage, before the modified BUCK converter.
    This demonstration board design is complaint with standard EN61000-3-2 (limits for harmonic current emissions).

    Key Features

    • EN55015 and EN61000-3-2 compliant
    • EMI filter implemented
    • Non-isolated SMPS
    • Universal PWM input for dimming (external board required)
    • 80 W LED driver
    • High efficiency (~90%)
    • 350 mA, 700 mA and 1 A LED current settings
    • High power factor: 0.982 for 230 V/50 Hz AC
    • Brightness regulation between 0 and 100%
    • Wide input voltage range: 88 V to 265 VAC

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
STEVAL-ILL013V1 L6562AD
NRND
107 1 EAR99 - No availability of distributors reported, please contact our sales office

STEVAL-ILL013V1

Core Product

L6562AD

Marketing Status

NRND

Unit Price (US$)

107.0*

Unit Price (US$)

107

Quantity

1

ECCN (US)

EAR99

Country of Origin

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

Recommended for you

Related Applications

LED Lighting and Controls

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB0766
      80 W offline PFC and LED driver demonstration board with dimming based on the L6562A
      1.2
      141.14 KB
      PDF
      DB0766

      80 W offline PFC and LED driver demonstration board with dimming based on the L6562A

    • Description Version Size Action
      UM0670
      80 W offline LED driver with PFC
      2.1
      1.83 MB
      PDF
      UM0670

      80 W offline LED driver with PFC

Hardware Resources

    • Description Version Size Action
      Gerber files for STEVAL-ILL013V1 board 1.0
      51.2 KB
      ZIP

      Gerber files for STEVAL-ILL013V1 board

    • Description Version Size Action
      BOM for STEVAL-ILL013V1 board 1.0
      58.75 KB
      PDF

      BOM for STEVAL-ILL013V1 board

    • Description Version Size Action
      Board schematics for STEVAL-ILL013V1 board 1.0
      55.06 KB
      PDF

      Board schematics for STEVAL-ILL013V1 board

Legal

    • Description Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-ILL013V1
NRND
CARD Industrial Not compliant -

STEVAL-ILL013V1

Package:

CARD

Material Declaration**:

Marketing Status

NRND

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Not compliant

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
