9 W Triac dimmable, high power factor, isolated LED driver based on the HVLED815PF (for US market)

Download databrief

Order from our distributors

Check availability
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

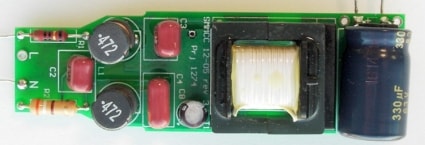

  • The STEVAL-ILL044V1 demonstration board showcases ST’s new LED driver chip, HVLED815PF. It solves the problem of low-cost drive circuitry for LED replacements for 40 W incandescent or equivalent compact-fluorescent lamps.

    The HVLED815PF is a new integrated power controller using primary-side control to achieve LED current regulation within +/-5%. (It also has primary-side voltage regulation, used here for open load protection).
    The device incorporates an 800 V avalanche-rated FET and fits in a standard SO-16 package. An internal startup circuit eliminates the need for external rapid-start circuitry.
    The PFC-flyback power converter operates in transition mode for the highest efficiency and best use of components. With the addition of a few extra components the HVLED815PF is made to draw near-sinusoidal input current from the AC line. The circuit regulates LED current over a wide range of line voltage and LED string voltage, and is dimmable with standard Triac-based dimmers.

    Key Features

    • +/- 5% primary-side current regulation, no optocoupler
    • Fully isolated output
    • Low component count
    • Only 1 tight-tolerance component
    • High efficiency, >86%
    • High power factor >0.98
    • Low THD, < 20% over 90 V to 132 V range
    • Fits in 28 mm tubing
    • 9 W output, for light equal to range from 40 W to 60 W incandescent
    • Startup within 0.2 seconds
    • Dimmable over 90 V to 132 V voltage range
    • RoHS compliant
