STEVAL-IPFC02V1

Active

2 kW two-channel interleaved PFC reference design based on the STNRGPF02 digital controller

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Resources
Tools & Software
Solutions
eDesignSuite
Quality & Reliability
Sales Briefcase
Get Started
Sample & Buy
Partner products
  • The STEVAL-IPFC02V1 2 kW interleaved PFC reference design features the performance of analog cycle-by-cycle current regulation and the flexibility of digital control to generate sinusoidal supplies with very high power factor and very low harmonic distortion.

    Digital power control is based on the STNRGPF02 digital PFC controller, which can drive up to two interleaved PFC channels using mixed signal (analog and digital) average current mode control in CCM at fixed frequency.

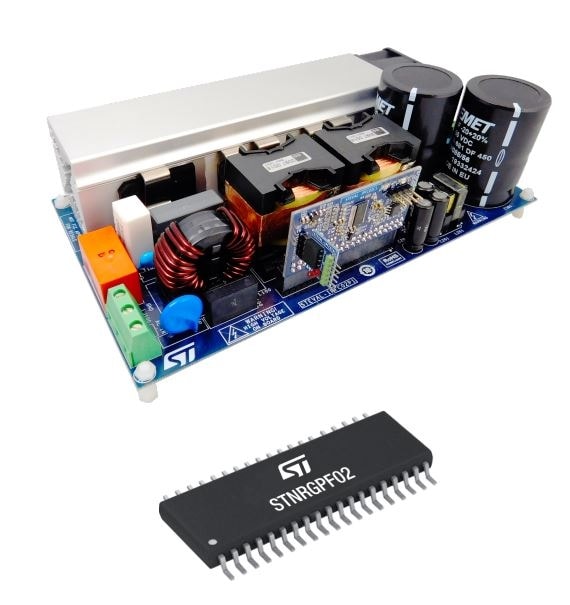

    The 2 kW interleaved PFC reference design consists of a power board with 2-ch interleaved CCM boost power stage, auxiliary power supply, a control board with embedded STNRGPF02 digital controller and a small adapter board for programming the STNRGPF02.
    eDesignSuite is the tool available in the ST website to configure the STNRGPF02 according to specific design requirements for each interleaved PFC.

    Key Features

    • Input voltage range: 90 to 265 VAC
    • Line frequency range: 47 to 63 Hz
    • Maximum output power: 2 kW at 230 V
    • Inrush current limiter
    • Output voltage: 400 V
    • Power factor: > 0.98 at 20% load
    • Total harmonic distortion: <5% at 20% load
    • Mixed-signal average current mode control, CCM fixed frequency operation
    • Switching frequency (fsw): 60 kHz
    • Cycle-by-cycle regulation (analog current control loop)
    • Input voltage and load feed-forwards
    • Phase shedding
    • Current balance
    • Burst-mode operation
    • Overvoltage protection
    • Overcurrent protection
    • Thermal protection
    • Status indicator LEDs
    • Cooling function
