Battery charger demonstration board with integrated power switch for Li-ION/Li-POLYMER based on the L6924D

Download databrief

This product is in stock in our e-store

Sample and buy
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

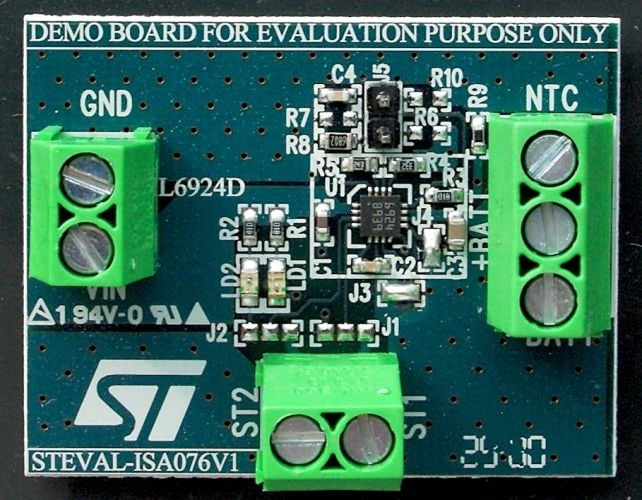

  • The STEVAL-ISA076V1 demonstration board is based on the L6924D battery charger system with integrated power switch. The L6924D device is a fully monolithic battery charger dedicated to single-cell lithium-ion polymer (Li-Pol) battery packs, and is the ideal solution for space-limited applications such as PDAs, handheld equipment, cellular phones, and digital cameras.

    When an external voltage-regulated wall adapter is used, the L6924D works in linear mode, and charges the battery using a constant current/constant voltage (CC/CV) profile.
    When a current-limited adapter is used, the device can operate in quasi-pulse mode, dramatically reducing power dissipation.

    Key Features

    • Operating input voltage up to 12 V
    • Fully integrated solution with power MOSFET, reverse blocking diode, sense resistor, and thermal control
    • Both linear and quasi-pulse operation
    • Programmable charge current both in fast charge (up to 1 A) and in pre-charge mode
    • Selectable 4.1 V and 4.2 V output voltage (±1% accuracy)
    • Programmable termination current
    • Programmable pre-charge mode voltage threshold
    • Programmable charge timer
    • Multifunction pin for flexible charge process termination
    • Status outputs to drive LEDs or host processor interface
    • Battery absence detection
    • Closed loop thermal control
    • NTC or PTC thermistor interface for battery temperature monitoring and protection
    • RoHS compliant
