STEVAL-ISA077V2

Active

High efficiency synchronous rectifier step-up converter demonstration board based on the L6920D

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

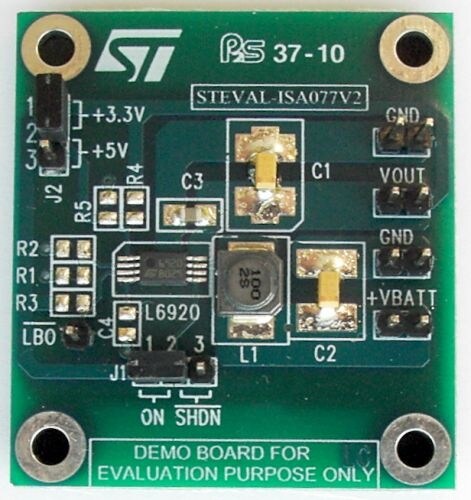

  • The STEVAL-ISA077V2 demonstration board is based on the L6920D high efficiency step-up converter as well as the external components required for a typical application.

    Startup is guaranteed at 1 V and the device operates down to 0.6 V. The output voltage can be adjusted from 2 V to 5.2 V and two fixed output voltages (3.3 V and 5 V) are also available.

    Key Features

    • 0.6 V to 5.5 V operating input voltage
    • 1 V startup input voltage
    • Internal synchronous rectifier
    • Zero shutdown current
    • 3.3 V and 5 V fixed or adjustable
    • Output voltage (2 V up to 5.2 V)
    • 120 mΩ internal active switch
    • Low battery voltage detection
    • Reverse battery protection
    • RoHS compliant

Sample & Buy

Part Number
Core Product
Marketing Status
ECCN (US)
Country of Origin
Board production status
Approximate Price (US$)* / Qty
Order from ST
Order from Distributors
STEVAL-ISA077V2 L6920D
Active
EAR99 ITALY - 31.85 / 1.0 Buy now Check Availability

Distributor availability ofSTEVAL-ISA077V2

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 1 1 Order Now
COMPEL EUROPE 1 1 Order Now
RS COMPONENTS EUROPE 2 1 Order Now
MOUSER WORLDWIDE 3 1 Order Now

Distributor reported inventory date: 2020-03-31

Distributor Name

DIGIKEY

Stock

1

Min.Order

1

Region

WORLDWIDE Order Now

COMPEL

Stock

1

Min.Order

1

Region

EUROPE Order Now

RS COMPONENTS

Stock

2

Min.Order

1

Region

EUROPE Order Now

MOUSER

Stock

3

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2020-03-31

STEVAL-ISA077V2

Core Product

L6920D

Marketing Status

Active

Approximate Price (US$)* / Qty

31.85 / 1.0

Distributor availability ofSTEVAL-ISA077V2

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 1 1 Order Now
COMPEL EUROPE 1 1 Order Now
RS COMPONENTS EUROPE 2 1 Order Now
MOUSER WORLDWIDE 3 1 Order Now

Distributor reported inventory date: 2020-03-31

Distributor Name

DIGIKEY

Stock

1

Min.Order

1

Region

WORLDWIDE Order Now

COMPEL

Stock

1

Min.Order

1

Region

EUROPE Order Now

RS COMPONENTS

Stock

2

Min.Order

1

Region

EUROPE Order Now

MOUSER

Stock

3

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2020-03-31

Budgetary Price (US$)* / Qty

31.85 / 1.0

ECCN (US)

EAR99

Country of Origin

ITALY

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

Recommended for you

Related Applications

Power Supplies and Converters

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB1180
      High efficiency synchronous rectifier step-up converter demonstration board based on the L6920D
      1.1
      97.49 KB
      PDF
      DB1180

      High efficiency synchronous rectifier step-up converter demonstration board based on the L6920D

Hardware Resources

    • Description Version Size Action
      Gerber files for STEVAL-ISA077V2 1.0
      190.74 KB
      ZIP

      Gerber files for STEVAL-ISA077V2

    • Description Version Size Action
      Bill of materials for STEVAL-ISA077V2 1.0
      71.56 KB
      PDF

      Bill of materials for STEVAL-ISA077V2

    • Description Version Size Action
      Board schematics for STEVAL-ISA077V2 1.0
      27.69 KB
      PDF

      Board schematics for STEVAL-ISA077V2

Publications and Collaterals

    • Description Version Size Action
      eDesignSuite-The smart way to design your application 1.0
      842.88 KB
      PDF

      eDesignSuite-The smart way to design your application

Legal

    • Description Version Size Action
      Terms of use 1.7
      57.54 KB
      PDF

      Terms of use

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-ISA077V2
Active
CARD Industrial Ecopack2 -

STEVAL-ISA077V2

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
