Product overview
Description

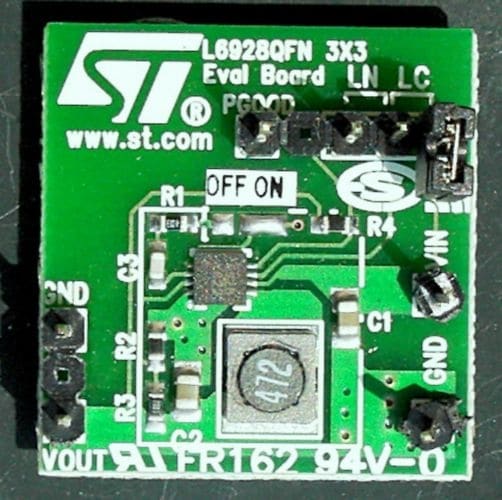

The STEVAL-ISA079V2 demonstration board is based on the L6928 DC-DC monolithic regulator, specifically designed to provide extremely high efficiency. The L6928 supply voltage can be as low as 2.0 V, allowing its use in single Li-Ion cell supplied applications.
The output voltage can be selected by an external divider down to 0.6 V. The duty cycle can saturate to 100%, allowing low dropout operation.
-
All features
- 2.0 V to 5.5 V battery input range
- High efficiency: up to 95%
- Extremely low quiescent current
- 1 μA max shutdown supply current
- 800 mA max output current
- Adjustable output voltage from 0.6 V
- Low dropout operation: up to 100% duty cycle
- ± 1% output voltage accuracy
- 1.4 MHz switching frequency
- Externally synchronizable from 1 MHz to 2 MHz
- Short-circuit protection
- RoHS compliant
All resources
| Resource title | Version | Latest update |
|---|
Product Specifications (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 2.1 | 19 Sep 2016 | 19 Sep 2016 |
Evaluation Board Terms of Use (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.7 | 28 Apr 2021 | 28 Apr 2021 |
All resources
| Resource title | Version | Latest update |
|---|
Bill of Materials (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.0 | 19 Mar 2015 | 19 Mar 2015 |
Schematic Pack (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.0 | 19 Mar 2015 | 19 Mar 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | WEEE Compliant | Material Declaration** |
|---|---|---|---|---|---|---|
| STEVAL-ISA079V2 | NRND | CARD | Industrial | Ecopack2 | - | |
STEVAL-ISA079V2
Package:
CARDMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
Sample & Buy
| Part Number | Order from Distributors | Order from ST | Core Product | Marketing Status | Supplier | ECCN (US) | ECCN (EU) | Country of Origin | Board production status | Budgetary Price (US$)*/Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-ISA079V2 | 1 distributors | L6928Q1 | NRND | - | EAR99 | NEC | ITALY | - | 34.0 / 1 |
Core Product
L6928Q1Marketing Status
NRNDBudgetary Price (US$)*/Qty
34.0 / 1(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
