STEVAL-ISA084V1

Active

4 A peak, 800 kHz fixed-frequency PWM synchronous step-down demonstration board with enable on/off based on the ST1S40

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase

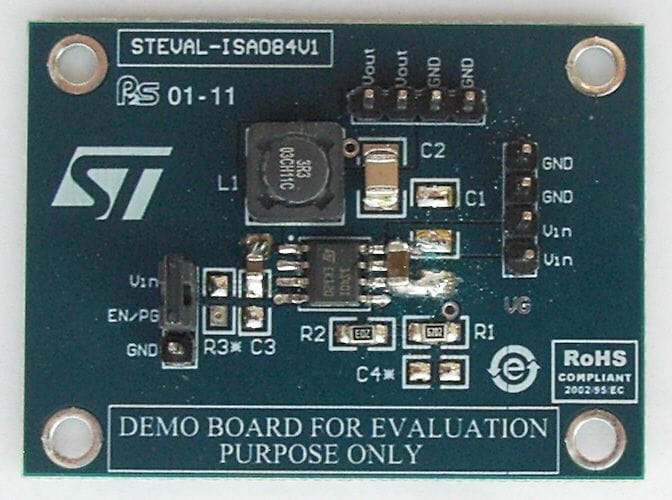

  • The STEVAL-ISA084V1, based on the ST1S40, is an internally compensated 800 kHz fixed-frequency PWM synchronous step-down converter demonstration board.

    The ST1S40 operates from 4.0 V to 18 V input, while it regulates an output voltage as low as 0.8 V and up to VIN (100% duty-cycle).
    The ST1S40 integrates 95 mΩ high side switch and 69 mΩ synchronous rectifier allowing very high efficiency with very low output voltages.
    The peak current mode control with internal compensation delivers a very compact solution with a minimum component count.
    The device is protected through cycle-by-cycle current limiting in case of overload and is also protected by current foldback function with frequency reduction in case of short-circuit
    The device is available with an enable on/off function.

    Key Features

    • Vin: 4 V to 18 V
    • Vout: 3.3 V
    • Maximum output current: 4 A
    • Switching frequency: 800 kHz
    • Short-circuit: protected
    • RoHS compliant

Recommended for you

Related Applications

Home, Building and City Automation

Lighting and Controls

Power Supplies and Converters

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-ISA084V1
Active
CARD Industrial Ecopack2 -

STEVAL-ISA084V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Board production status
Budgetary Price (US$)*/Qty
STEVAL-ISA084V1 Available at 4 distributors

Distributor availability ofSTEVAL-ISA084V1

Distributor Name
Region Stock Min. Order Third party link
COMPEL EUROPE 2 1 Order Now
RS COMPONENTS EUROPE 5 1 Order Now
P&S ASIA/PACIFIC 1 1 Order Now
MOUSER WORLDWIDE 15 1 Order Now

Distributor reported inventory date: 2020-11-26

Distributor Name

COMPEL

Stock

2

Min.Order

1

Region

EUROPE Order Now

RS COMPONENTS

Stock

5

Min.Order

1

Region

EUROPE Order Now

P&S

Stock

1

Min.Order

1

Region

ASIA/PACIFIC Order Now

MOUSER

Stock

15

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2020-11-26

Buy Direct ST1S40IDR
Active
- EAR99 NEC ITALY - 47.0 / 1

STEVAL-ISA084V1

Core Product

ST1S40IDR

Marketing Status

Active

Budgetary Price (US$)*/Qty

47.0 / 1

Distributor availability ofSTEVAL-ISA084V1

Distributor Name
Region Stock Min. Order Third party link
COMPEL EUROPE 2 1 Order Now
RS COMPONENTS EUROPE 5 1 Order Now
P&S ASIA/PACIFIC 1 1 Order Now
MOUSER WORLDWIDE 15 1 Order Now

Distributor reported inventory date: 2020-11-26

Distributor Name

COMPEL

Stock

2

Min.Order

1

Region

EUROPE Order Now

RS COMPONENTS

Stock

5

Min.Order

1

Region

EUROPE Order Now

P&S

Stock

1

Min.Order

1

Region

ASIA/PACIFIC Order Now

MOUSER

Stock

15

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2020-11-26

Supplier

-

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

47.0 / 1

Country of Origin

ITALY

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
