STEVAL-ISA095V1
Active
Design Win
Up to 3 A step-down switching regulator based on the ST1S14

Save to myST
Download databrief
Order Direct

Product overview

Description

The STEVAL-ISA095V1 demonstration board is designed to provide an evaluation platform for testing the ST1S14, a step-down monolithic power switching regulator capable of delivering up to 3 A of output current. The high current level is possible thanks to an HSOP8 package with exposed frame.

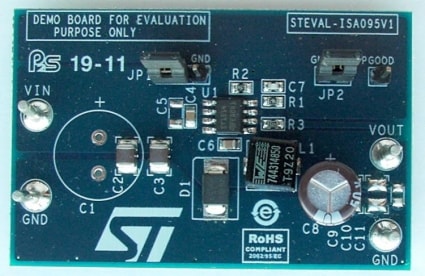

STEVAL-ISA095V1 photo

The output voltage can be set from 1.22 V. An internal oscillator fixes the switching frequency at 850 kHz.

A Power Good open collector output validates the regulated output voltage as soon as it reaches the regulated level.

Pulse-by-pulse current limiting offers effective constant current short-circuit protection, while the current foldback decreases overstress in persistent short-circuit conditions.

  • All features

    • 3 A DC output current
    • Operating input voltage from 5.5 V to 48 V
    • 850 kHz internally fixed switching frequency
    • Internal soft-start
    • Internal current limiting
    • Inhibit for zero current consumption
    • 2 mA maximum quiescent current over-temperature range
    • Thermal shutdown
    • RoHS compliant
    Read more Read less
