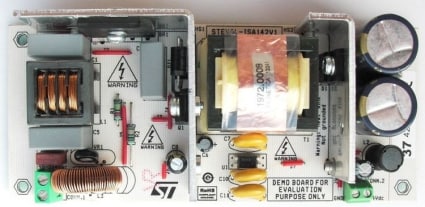

  • The STEVAL-ISA142V1 product evaluation board implements a 50 W, wide-range mains input, power factor-corrected power supply suitable for all low power applications requiring a high power factor, such as lighting applications and LED power supplies. Use of the low-cost L6564 combined with simple flyback topology provide a very competitive solution.

    Key Features

    • Line voltage range: 90 to 265 VAC
    • Minimum line frequency (fl): 47-63 Hz
    • Minimum switching frequency: 44 KHz
    • Reflected voltage: 140 V
    • Regulated output voltage: 24 V
    • Rated output power: 50 W
    • Power factor (load ≥ 50%): 0.9 minimum
    • Minimum efficiency at full load: 88%
    • Maximum 2 fl output voltage ripple: 1.1 V pk-pk (VIN=230 VAC, Pout=50 W)
    • Maximum ambient temperature: 50 °C
    • Conducted EMI: in accordance with EN55022 class-B
    • PCB type and size: single-sided, 35 um, CEM-1, 140 x 60 mm
    • RoHS compliant
