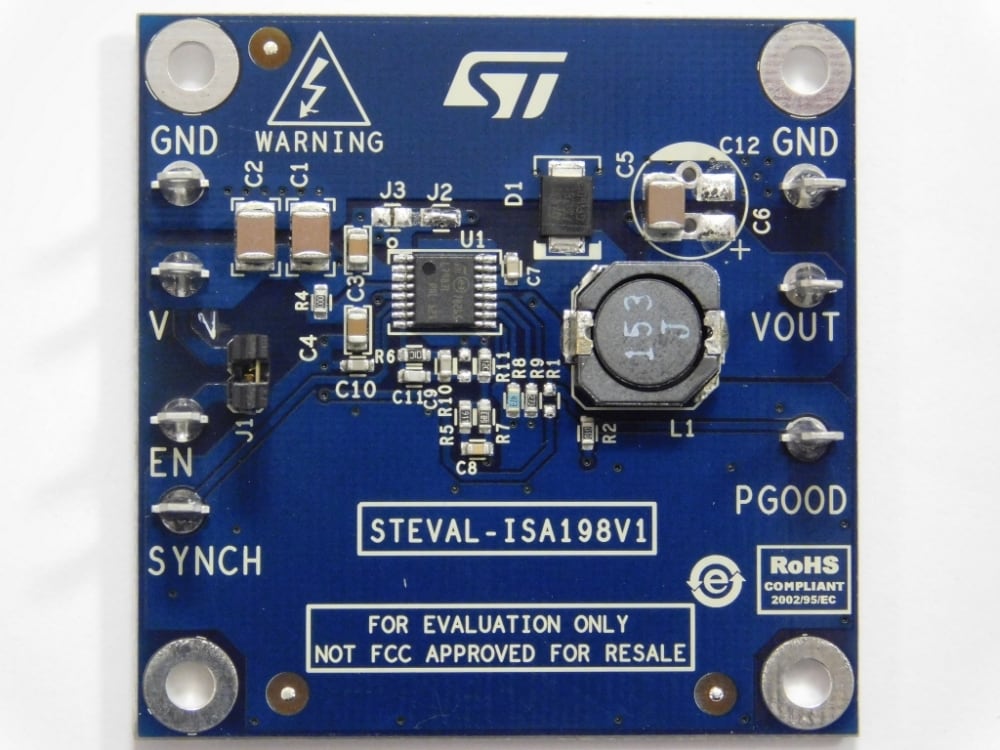

The STEVAL-ISA198V1 product evaluation board is a step-down switching power supply based on the L7987L regulator in an HTSSOP16 package. The output voltage can be set starting from 0.8 V. Low drop-out operation, due to the advanced integrated switch management, can be achieved.
The L7987L is a 61 V, 2 A step-down asynchronous switching regulator with embedded power MOSFET capable of delivering up to 2 A of current, depending on the application conditions.
The embedded switch-over feature on the VBIAS pin and the light load management (pulse skipping) help maximize power conversion efficiency across the entire load range.
The soft-start, current limit threshold and switching frequency are adjustable for application optimization.
The device includes an internal 250 kHz oscillator that can be externally adjusted up to 1.5 MHz; two L7987L regulators can be synchronized in a 180° out-of-phase configuration for reduced total input RMS current.
-
All features
- 4.5 V to 60 V input voltage
- Step-down (buck) conversion
- 5 V output voltage (VIN > 6 V)
- Up to 2 A DC output current
- 500 kHz switching frequency
- 5 ms programmed soft-start
- Compliant with ceramic output capacitors
- 180° out of phase synchronization available
- Auto recovery overcurrent and thermal protection
- RoHS compliant
