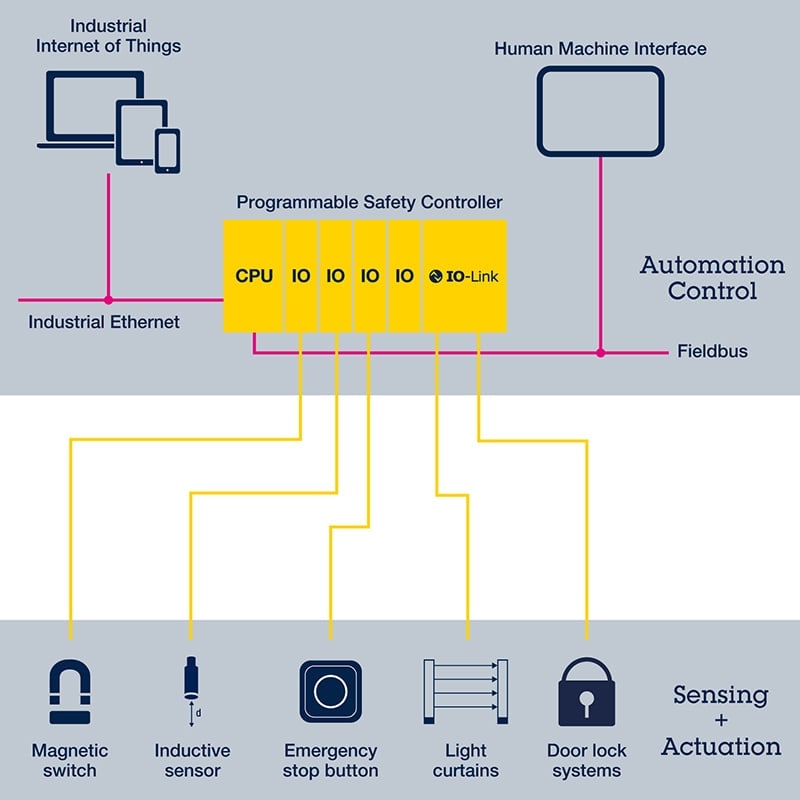

A safety Programmable Logic Controller (PLC) brings additional safety features to the standard functionalities of a PLC in order to meet Safety Integrity Level (SIL) requirements as described in the IEC 61508 standard. PLCs are usually housed in yellow boxes and are implemented in equipment where a higher level of safety is required, for instance in machinery used by operators.

To help meet the requirements defined in the IEC 61131 standard, ST offers a wide range of devices including high-performance STM32 microcontrollers, transceivers for fieldbus and IO-Link connectivity as well as fully protected Current-Limited Termination (CLT) ICs, Intelligent Power Switches (IPS) and protection devices, many of which are part of the 10-year longevity commitment program.

ST also provides an ecosystem of hardware and software evaluation and development tools as well as support services delivered together with partners, to help meet the reliability, safety and security challenges of Industry 4.0.

Featured Products

Part Number
Description
STEVAL-IFP010V3 High-side driver based on the VNI2140J Quick view

Key Features

  • Output current: 1 A per channel
  • Shorted-load protection
  • Junction overtemperature protection
  • Case overtemperature protection for thermal independence of the channels
  • Non-simultaneous TCSD (thermal case shutdown) restart for the various channels
  • Protection against loss of ground
  • Current limitation
  • Undervoltage shutdown
  • Open load in off-state and short to VCC detection
  • Open-drain diagnostic outputs
  • 3.3 V CMOS/TTL compatible inputs
  • Fast demagnetization of inductive loads
  • Conforms to IEC 61131-2 supply voltage: +4 V to +36 V
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP020V1 High side driver based on L6370Q Quick view

Key Features

  • Single-channel topology
  • Galvanic isolation
  • 2.5 A output current
  • 9.5 V to 35 V supply voltage range
  • Short-circuit, overload, and thermal protections
  • Loss of ground and VS protections
  • Fast demagnetization of inductive loads
  • Open load, output short to VS detection
  • Two diagnostic outputs
  • Output status LED driver
  • EMC immunity against burst, surge, and ESD
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP016V2 IO-Link communication master transceiver demonstration board based on the L6360 Quick view

Key Features

  • Supply voltage from 18 V to 32.5 V
  • Fully protected programmable output stages
  • Supports COM1, COM2 and COM3 mode
  • 5 mA IO-Link digital input
  • Additional IEC61131-2 type-1 input
  • 3.3 V / 5 V, 50 mA linear regulator
  • Fast mode I2 C for IC control, configuration and diagnostic
  • Diagnostic dual LED sequence generator and driver
  • 5 V and 3.3 V compatible I/Os
  • Interface compatible with STEVAL-PCC009V2 and STEVAL-PCC009V1
  • EMC immune application against ESD, burst, surge, RF noise, etc., according to IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, and IEC61000-4-6 standards
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP015V2 ISO8200B High Side Driver - 8 Channels evaluation board Quick view

Key Features

  • VCC operating voltage from 10.5 to 33 V
  • 0.7 A for each channel
  • Reverse polarity protection on VCC and VDD supply voltage
  • Digital supply voltage VDD 3.3/5 V
  • Microcontroller interface direct/synchronous mode communication
  • Designed to meet requirements of IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 standards
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
X-NUCLEO-PLC01A1 Industrial input/output expansion board based on VNI8200XP and CLT01-38SQ7 for STM32 Nucleo Quick view

Key Features

  • Enables a PLC (Programmable Logic Controller) function subset on STM32 Nucleo
  • 8x input with CLT01-38SQ7 high-speed protected digital termination array
  • 8x output with VNI8200XP high-side solid state relay
  • Status LEDs: Fault, Thermal, Power
  • IO (input/output) activity LEDs 24 V power supply
  • Free comprehensive development firmware library and example compatible with STM32Cube firmware
  • Compatible with STM32 Nucleo boards
  • Compatible with Arduino UNO R3 connector
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP032V1 Eight-channel high-side driver based on the VNI8200XP-32 Quick view

Key Features

  • Operating voltage: from 10.5 to 33 V
  • Operating current: 1.2 A for each channel
  • Reverse polarity protection
  • High-speed opto-isolation for SPI and parallel communication
  • Low-speed opto-isolation for device fault signaling
  • Step-down converter for 3.3 V or 5 V
  • Digital supply voltage
  • LED matrix for channel status signaling
  • Microcontroller interface
  • Designed to meet EMC standard requirements: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
X-NUCLEO-OUT01A1 Industrial Digital output expansion board based on ISO8200BQ for STM32 Nucleo Quick view

Key Features

  • Enables industrial programmable logic controller (PLC) capabilities on STM32 Nucleo
  • ISO8200BQ galvanic isolated octal high-side smart power solid state-relay
  • Operating voltage from 10.5 V to 33 V
  • Maximum operating output current per channel IOUT = 700 mA
  • Status LEDs: Fault, Thermal protection
  • Compatible with Arduino® UNO R3 connector
  • Compliance with EMC standards:
    • IEC61000-4-2: 8kV Contact Discharge and 15kV Air discharge
    • IEC61000-4-3: 4kV Discharge on output and supply line
    • IEC61000-4-5: 2kV Discharge on output and supply line
  • Compatible with STM32 Nucleo boards
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP028V1 Single high side driver based on IPS160H Quick view

Key Features

  • Operating voltage from 8 to 60 V
  • Operating current up to 2.5 A
  • Programmable cut-off delay time
  • Reverse polarity protection
  • Galvanic isolation on PCB
  • Input pins compatible with VCC rails
  • Green LED for channel ON/OFF status
  • Red LED for common diagnostics on:
    • Open load in OFF state
    • Cut-off
    • Thermal protection
    • Red LED functionality on DIAG pin guaranteed from VCC = 12 V
  • Microcontroller interface
  • IEC 61000-4-2, IEC61000-4-4 and IEC 61000-4-5 compliant
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP017V3 Evaluation board for IO-Link transceiver device L6362A Quick view

Key Features

  • Operating voltage from 7 to 36 V
  • Operating current up to 300 mA
  • Configurable in push-pull, high-side or low-side
  • Overcurrent protection with cutoff function
  • Overtemperature protection
  • Suitable to drive R, L and C loads
  • Delayed cutoff for quick charging of capacitive loads
  • Able to handle up to 500 mJ inductive loads
  • Full reverse polarity protection on VCC , GND, OUTH, OUTL and I/Q pins
  • Green device status LED (ON or OFF)
  • Red diagnostic LEDs for:
    • cutoff and overtemperature events
    • overload
  • Supports COM1, COM2 and COM3
  • Meets IEC 61000-4-4 (burst), IEC 61000-4-2 (ESD) and EN60947-5-2/IEC 61000-4-5 (surge) requirements
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP034V1 Single high side driver based on IPS161H Quick view

Key Features

  • Operating voltage range: 8 to 60 V
  • Operating current: 0.5 A max
  • Programmable cut-off delay time
  • Reverse polarity protection
  • Galvanic isolation on PCB
  • Input pins compatible with VCC rails
  • Green LED for channel ON/OFF status
  • Red LED for Common Diagnostics on:
    • open load in OFF state
    • cut-off
    • thermal protection
  • Microcontroller interface
  • Compliant with IEC 61000-4-2, IEC61000-4-4 and IEC 61000-4-5
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP029V1 Quad low side driver demonstration board based on IPS4260L Quick view

Key Features

  • VCC operating voltage from 8 V to 36 V
  • VDD operating voltage range 3.3 V to 5 V
  • Programmable load limitation current
  • Programmable cut-off delay time
  • Up to 100 kHz switching frequency
  • High speed opto-isolation for driving and feedback diagnostic
  • Diagnostic LED for thermal and cut-off channel status
  • Diagnostic LED for open load detection in OFF state
  • Thermal shut down
  • Reverse polarity protection
  • Designed to meet EMC standard requirements: IEC61000-4-2, IEC61000-4-4 and IEC61000-4-5
  • RoHS compliant

Show More

FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP035V1 Isolated and non-isolated digital inputs on evaluation board based on CLT03-2Q3 self-powered current limited termination device Quick view

Key Features

  • 2 isolated high-side / low-side digital inputs
  • 2 non-isolated high-side digital inputs
  • 60 V and reverse input plugin capable
  • No power supply required
  • Safety test pulse
  • High EMI robustness thanks to integrated digital filter
  • IEC61131-2 type 1 and type 3 compliant
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-ISA206V1 38 V, 2 A synchronous step-down switching regulator evaluation board based on L6986H Quick view

Key Features

  • 2 A DC output current
  • 4 V to 38 V operating input voltage.
  • Low consumption mode or low noise mode
  • Programmable ISKIP current
  • 30 μA IQ at light load (LCM VIN  = 12 V and VOUT  = 3.3 V)
  • 8 μA IQ-SHTDWN
  • Adjustable fSW (250 kHz - 2 MHz)
  • Output voltage adjustable from 0.85 V to VIN
  • Embedded output voltage supervisor
  • Synchronization (in all fSW range)
  • Adjustable soft-start time
  • Internal current limiting
  • Overvoltage protection
  • Output voltage sequencing
  • Peak current mode architecture
  • RDS(on)HS  = 180 mΩ; RDS(on)LS  = 150 mΩ
  • Thermal shutdown
  • RoHS and WEEE compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IDP004V2 IO-Link master multi-port evaluation board based on L6360 Quick view

Key Features

  • Master IO-Link stack embedded with read out protection
  • Limitation of time of use (10000 minutes)
  • Fully compatible with all IO-Link devices
  • Main supply voltage 32 V maximum
  • 4 L6360 IO-Link master transceiver ICs
  • RS-485 serial interface
  • CAN serial interface
  • USB interface
  • DC-DC converter
  • On-board reverse polarity protection
  • Designed to meet IEC requirement for industrial standards
  • RoHS and WEEE compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP005V2 High side driver demonstration board based on the VN751PT Quick view

Key Features

  • RoHS compliant
  • Transil addition between TRIAC A2-G terminals
  • Overvoltage protection is not implemented on the board but some solder pads are available to implement it in two different ways:
  • Free development area with hole matrix available for application breadboard adaptation
  • 3 independent application programsHand dryer with infrared sensor and T1235H-6T switchBathroom fan with humidity sensor and ACS108 switchMulti-entrance room controller with push button and BTB08-600SW switch
  • Capacitive power supply (680 nF capacitor EPCOS B32923C36845 V ±10%Average output current: 16 mAStandby power losses < 0.3 W @ 230 V
  • Two potentiometers for setting sensor sensitivity and TRIAC turn-off delay
  • ICC connector for software adjustment
  • Varistor addition between mains voltage
  • Program selector (U2)

Show More



FEATURED RESOURCES

Schematics BOM Gerber
Part Number
STEVAL-IFP010V3

High-side driver based on the VNI2140J

Key Features

  • Output current: 1 A per channel
  • Shorted-load protection
  • Junction overtemperature protection
  • Case overtemperature protection for thermal independence of the channels
  • Non-simultaneous TCSD (thermal case shutdown) restart for the various channels
  • Protection against loss of ground
  • Current limitation
  • Undervoltage shutdown
  • Open load in off-state and short to VCC detection
  • Open-drain diagnostic outputs
  • 3.3 V CMOS/TTL compatible inputs
  • Fast demagnetization of inductive loads
  • Conforms to IEC 61131-2 supply voltage: +4 V to +36 V
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP020V1

High side driver based on L6370Q

Key Features

  • Single-channel topology
  • Galvanic isolation
  • 2.5 A output current
  • 9.5 V to 35 V supply voltage range
  • Short-circuit, overload, and thermal protections
  • Loss of ground and VS protections
  • Fast demagnetization of inductive loads
  • Open load, output short to VS detection
  • Two diagnostic outputs
  • Output status LED driver
  • EMC immunity against burst, surge, and ESD
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP016V2

IO-Link communication master transceiver demonstration board based on the L6360

Key Features

  • Supply voltage from 18 V to 32.5 V
  • Fully protected programmable output stages
  • Supports COM1, COM2 and COM3 mode
  • 5 mA IO-Link digital input
  • Additional IEC61131-2 type-1 input
  • 3.3 V / 5 V, 50 mA linear regulator
  • Fast mode I2 C for IC control, configuration and diagnostic
  • Diagnostic dual LED sequence generator and driver
  • 5 V and 3.3 V compatible I/Os
  • Interface compatible with STEVAL-PCC009V2 and STEVAL-PCC009V1
  • EMC immune application against ESD, burst, surge, RF noise, etc., according to IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, and IEC61000-4-6 standards
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP015V2

ISO8200B High Side Driver - 8 Channels evaluation board

Key Features

  • VCC operating voltage from 10.5 to 33 V
  • 0.7 A for each channel
  • Reverse polarity protection on VCC and VDD supply voltage
  • Digital supply voltage VDD 3.3/5 V
  • Microcontroller interface direct/synchronous mode communication
  • Designed to meet requirements of IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 standards
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
X-NUCLEO-PLC01A1

Industrial input/output expansion board based on VNI8200XP and CLT01-38SQ7 for STM32 Nucleo

Key Features

  • Enables a PLC (Programmable Logic Controller) function subset on STM32 Nucleo
  • 8x input with CLT01-38SQ7 high-speed protected digital termination array
  • 8x output with VNI8200XP high-side solid state relay
  • Status LEDs: Fault, Thermal, Power
  • IO (input/output) activity LEDs 24 V power supply
  • Free comprehensive development firmware library and example compatible with STM32Cube firmware
  • Compatible with STM32 Nucleo boards
  • Compatible with Arduino UNO R3 connector
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP032V1

Eight-channel high-side driver based on the VNI8200XP-32

Key Features

  • Operating voltage: from 10.5 to 33 V
  • Operating current: 1.2 A for each channel
  • Reverse polarity protection
  • High-speed opto-isolation for SPI and parallel communication
  • Low-speed opto-isolation for device fault signaling
  • Step-down converter for 3.3 V or 5 V
  • Digital supply voltage
  • LED matrix for channel status signaling
  • Microcontroller interface
  • Designed to meet EMC standard requirements: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
X-NUCLEO-OUT01A1

Industrial Digital output expansion board based on ISO8200BQ for STM32 Nucleo

Key Features

  • Enables industrial programmable logic controller (PLC) capabilities on STM32 Nucleo
  • ISO8200BQ galvanic isolated octal high-side smart power solid state-relay
  • Operating voltage from 10.5 V to 33 V
  • Maximum operating output current per channel IOUT = 700 mA
  • Status LEDs: Fault, Thermal protection
  • Compatible with Arduino® UNO R3 connector
  • Compliance with EMC standards:
    • IEC61000-4-2: 8kV Contact Discharge and 15kV Air discharge
    • IEC61000-4-3: 4kV Discharge on output and supply line
    • IEC61000-4-5: 2kV Discharge on output and supply line
  • Compatible with STM32 Nucleo boards
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP028V1

Single high side driver based on IPS160H

Key Features

  • Operating voltage from 8 to 60 V
  • Operating current up to 2.5 A
  • Programmable cut-off delay time
  • Reverse polarity protection
  • Galvanic isolation on PCB
  • Input pins compatible with VCC rails
  • Green LED for channel ON/OFF status
  • Red LED for common diagnostics on:
    • Open load in OFF state
    • Cut-off
    • Thermal protection
    • Red LED functionality on DIAG pin guaranteed from VCC = 12 V
  • Microcontroller interface
  • IEC 61000-4-2, IEC61000-4-4 and IEC 61000-4-5 compliant
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP017V3

Evaluation board for IO-Link transceiver device L6362A

Key Features

  • Operating voltage from 7 to 36 V
  • Operating current up to 300 mA
  • Configurable in push-pull, high-side or low-side
  • Overcurrent protection with cutoff function
  • Overtemperature protection
  • Suitable to drive R, L and C loads
  • Delayed cutoff for quick charging of capacitive loads
  • Able to handle up to 500 mJ inductive loads
  • Full reverse polarity protection on VCC , GND, OUTH, OUTL and I/Q pins
  • Green device status LED (ON or OFF)
  • Red diagnostic LEDs for:
    • cutoff and overtemperature events
    • overload
  • Supports COM1, COM2 and COM3
  • Meets IEC 61000-4-4 (burst), IEC 61000-4-2 (ESD) and EN60947-5-2/IEC 61000-4-5 (surge) requirements
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP034V1

Single high side driver based on IPS161H

Key Features

  • Operating voltage range: 8 to 60 V
  • Operating current: 0.5 A max
  • Programmable cut-off delay time
  • Reverse polarity protection
  • Galvanic isolation on PCB
  • Input pins compatible with VCC rails
  • Green LED for channel ON/OFF status
  • Red LED for Common Diagnostics on:
    • open load in OFF state
    • cut-off
    • thermal protection
  • Microcontroller interface
  • Compliant with IEC 61000-4-2, IEC61000-4-4 and IEC 61000-4-5
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP029V1

Quad low side driver demonstration board based on IPS4260L

Key Features

  • VCC operating voltage from 8 V to 36 V
  • VDD operating voltage range 3.3 V to 5 V
  • Programmable load limitation current
  • Programmable cut-off delay time
  • Up to 100 kHz switching frequency
  • High speed opto-isolation for driving and feedback diagnostic
  • Diagnostic LED for thermal and cut-off channel status
  • Diagnostic LED for open load detection in OFF state
  • Thermal shut down
  • Reverse polarity protection
  • Designed to meet EMC standard requirements: IEC61000-4-2, IEC61000-4-4 and IEC61000-4-5
  • RoHS compliant

Show More

FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP035V1

Isolated and non-isolated digital inputs on evaluation board based on CLT03-2Q3 self-powered current limited termination device

Key Features

  • 2 isolated high-side / low-side digital inputs
  • 2 non-isolated high-side digital inputs
  • 60 V and reverse input plugin capable
  • No power supply required
  • Safety test pulse
  • High EMI robustness thanks to integrated digital filter
  • IEC61131-2 type 1 and type 3 compliant
  • RoHS compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-ISA206V1

38 V, 2 A synchronous step-down switching regulator evaluation board based on L6986H

Key Features

  • 2 A DC output current
  • 4 V to 38 V operating input voltage.
  • Low consumption mode or low noise mode
  • Programmable ISKIP current
  • 30 μA IQ at light load (LCM VIN  = 12 V and VOUT  = 3.3 V)
  • 8 μA IQ-SHTDWN
  • Adjustable fSW (250 kHz - 2 MHz)
  • Output voltage adjustable from 0.85 V to VIN
  • Embedded output voltage supervisor
  • Synchronization (in all fSW range)
  • Adjustable soft-start time
  • Internal current limiting
  • Overvoltage protection
  • Output voltage sequencing
  • Peak current mode architecture
  • RDS(on)HS  = 180 mΩ; RDS(on)LS  = 150 mΩ
  • Thermal shutdown
  • RoHS and WEEE compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IDP004V2

IO-Link master multi-port evaluation board based on L6360

Key Features

  • Master IO-Link stack embedded with read out protection
  • Limitation of time of use (10000 minutes)
  • Fully compatible with all IO-Link devices
  • Main supply voltage 32 V maximum
  • 4 L6360 IO-Link master transceiver ICs
  • RS-485 serial interface
  • CAN serial interface
  • USB interface
  • DC-DC converter
  • On-board reverse polarity protection
  • Designed to meet IEC requirement for industrial standards
  • RoHS and WEEE compliant

Show More



FEATURED RESOURCES

Schematics BOM Gerber
STEVAL-IFP005V2

High side driver demonstration board based on the VN751PT

Key Features

  • RoHS compliant
  • Transil addition between TRIAC A2-G terminals
  • Overvoltage protection is not implemented on the board but some solder pads are available to implement it in two different ways:
  • Free development area with hole matrix available for application breadboard adaptation
  • 3 independent application programsHand dryer with infrared sensor and T1235H-6T switchBathroom fan with humidity sensor and ACS108 switchMulti-entrance room controller with push button and BTB08-600SW switch
  • Capacitive power supply (680 nF capacitor EPCOS B32923C36845 V ±10%Average output current: 16 mAStandby power losses < 0.3 W @ 230 V
  • Two potentiometers for setting sensor sensitivity and TRIAC turn-off delay
  • ICC connector for software adjustment
  • Varistor addition between mains voltage
  • Program selector (U2)

Show More



FEATURED RESOURCES

Schematics BOM Gerber
00 Files selected for download

Technical Documentation

    • Description Version Size Action
      AN5274
      EVALKITSTKNX user guide and performances report
      2.0
      12.79 MB
      PDF
      AN4373
      Galvanically-isolated 8 channel high-side driver based on the ISO8200B and ISO8200BQ
      2.0
      2.02 MB
      PDF
      AN4828
      STEVAL-IFP017V3 evaluation board based on the L6362A transceiver for IO-Link and SIO mode communication
      1.0
      992.21 KB
      PDF
      AN4781
      STEVAL-IFP028V1 evaluation board for single high-side driver IPS160H
      2.0
      3.82 MB
      PDF
      AN4998
      STEVAL-IFP034V1 evaluation board for the IPS161H single high side driver
      2.0
      6.08 MB
      PDF
      AN5274

      EVALKITSTKNX user guide and performances report

      AN4373

      Galvanically-isolated 8 channel high-side driver based on the ISO8200B and ISO8200BQ

      AN4828

      STEVAL-IFP017V3 evaluation board based on the L6362A transceiver for IO-Link and SIO mode communication

      AN4781

      STEVAL-IFP028V1 evaluation board for single high-side driver IPS160H

      AN4998

      STEVAL-IFP034V1 evaluation board for the IPS161H single high side driver

Publications and Collaterals

    • Description Version Size Action
      IPS160H/IPS161H - Ready for tomorrow’s factory automation 08.2017
      341.83 KB
      PDF
      ISO8200BQ - Leading innovation for industrial automation 08.2017
      363.54 KB
      PDF
      L6360 and L6362A - Embracing the Industry 4.0 revolution 12.2018
      282.88 KB
      PDF

      IPS160H/IPS161H - Ready for tomorrow’s factory automation

      ISO8200BQ - Leading innovation for industrial automation

      L6360 and L6362A - Embracing the Industry 4.0 revolution

    • Description Version Size Action
      Products and solutions for IO-Link transceivers 08.2017
      1.21 MB
      PDF
      Products and solutions for Smart industry 3.0
      2.99 MB
      PDF

      Products and solutions for IO-Link transceivers

      Products and solutions for Smart industry

Embedded Software

    • Part Number

      Programmable logic controller (PLC) app for Android and iOS

      STSW-IPS16X GUI for STEVAL-IFP028V1 and STEVAL-IFP034V1

    • Part Number

      Industrial input/output software expansion for STM32Cube

Power Management

Part number Description
IPS160H Single high-side switch for safety integrity level (SIL2 and SIL3) compliant systems
L7987 61 V 3 A asynchronous step-down switching regulator with adjustable current limitation
Part number
Single high-side switch for safety integrity level (SIL2 and SIL3) compliant systems
61 V 3 A asynchronous step-down switching regulator with adjustable current limitation

Protection Devices

Part number Description
CLT03-2Q3 Self powered digital input current limiter
Part number
Self powered digital input current limiter
