High-side current-sense amplifier demonstration board based on the TSC101

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

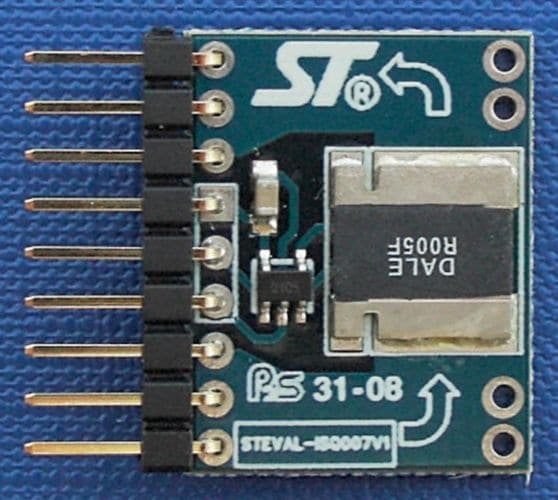

  • This demonstration board is specifically designed for the TSC101 integrated circuit.

    The TSC101 measures a very small voltage drop on a high-side shunt resistor, and, using an internally fixed gain, amplifies the difference into a ground-referenced output voltage; the amplification gain is internally fixed.
    Input common-mode and power supply voltages are independent.
    The common-mode voltage can range from 2.8 V to 30 V in operating conditions, and up to 60 V in absolute maximum ratings.
    The supply voltage can range from 4 V to 24 V.
    Current consumption of less than 300 μA over the temperature range and low input bias current (less than 8 μA in standard conditions, a few 100 nA if VCC isn't supplied) are particularly interesting to save power in the application.

    Key Features

    • Buffered output
    • Internally fixed gain:20 V/V (TSC101A)50 V/V (TSC101B)100 V/V (TSC101C)
    • Independent supply and input common-mode voltages
    • Wide common-mode surviving range: -0.3 V to 60 V (load-dump)
    • Wide common-mode operating range: 2.8 V to 30 V
    • Low current consumption: ICC max is 300 μA
    • Wide supply voltage range: 4 V to 24 V

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
STEVAL-ISQ007V1 TSC101BILT
Active
36.0 1 EAR99 ITALY Check Availability

Distributor availability ofSTEVAL-ISQ007V1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 4 1 Order Now
P&S ASIA/PACIFIC 1 1 Order Now
MOUSER WORLDWIDE 2 1 Order Now

Distributor reported inventory date: 2019-09-12

Distributor Name

DIGIKEY

Stock

4

Min.Order

1

Region

WORLDWIDE Order Now

P&S

Stock

1

Min.Order

1

Region

ASIA/PACIFIC Order Now

MOUSER

Stock

2

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-09-12

Buy now

STEVAL-ISQ007V1

Core Product

TSC101BILT

Marketing Status

Active

Unit Price (US$)

36.0*

Distributor availability ofSTEVAL-ISQ007V1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 4 1 Order Now
P&S ASIA/PACIFIC 1 1 Order Now
MOUSER WORLDWIDE 2 1 Order Now

Distributor reported inventory date: 2019-09-12

Distributor Name

DIGIKEY

Stock

4

Min.Order

1

Region

WORLDWIDE Order Now

P&S

Stock

1

Min.Order

1

Region

ASIA/PACIFIC Order Now

MOUSER

Stock

2

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-09-12

Unit Price (US$)

36

Quantity

1

ECCN (US)

EAR99

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

Recommended for you

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB0772
      High-side current-sense amplifier demonstration board based on the TSC101
      1.2
      117 KB
      PDF
      DB0772

      High-side current-sense amplifier demonstration board based on the TSC101

Hardware Resources

    • Description Version Size Action
      Gerber files for STEVAL-ISQ007V1 board 1.0
      11.14 KB
      ZIP

      Gerber files for STEVAL-ISQ007V1 board

    • Description Version Size Action
      BOM for STEVAL-ISQ007V1 board 1.0
      7.38 KB
      PDF

      BOM for STEVAL-ISQ007V1 board

    • Description Version Size Action
      Board schematics for STEVAL-ISQ007V1 board 1.0
      25.9 KB
      PDF

      Board schematics for STEVAL-ISQ007V1 board

Legal

    • Description Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-ISQ007V1
Active
CARD Industrial Ecopack2 -

STEVAL-ISQ007V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
