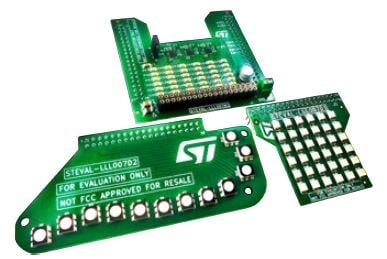

  • The STEVAL-LLL007V1 kit consists of the STEVAL-LLL007M1 main board and the STEVAL-LLL007D1 and STEVAL-LLL007D2 panel boards.

    To help you evaluate all the features of the LED1202 driver, you can connect the main board to a NUCLEO-L073RZ development platform running the STSW-LLL007FW firmware, which comes with pre-configured random and wave patterns for use in standalone mode.
    You can even develop your own pattern sequences by connecting the Nucleo platform to a PC running a dedicated GUI program, which also gives you access to all the LED driver settings.
    To achieve the maximum luminosity, you need to supply the STEVAL-LLL007D1 panel board and the STEVAL-LLL007D2 panel board with an external power source via the J13 connector on the STEVAL-LLL007M1 board.

    Key Features

    • 3x LED1202 12-channel low quiescent current LED drivers embedded on main board
    • Can immediately drive 36 white LEDs available on main board, to help you get started
    • Includes additional panel boards to let you expand your development:
      • 1 with 36 white LEDs
      • 1 with 12 RGB LEDs
    • Designed for use with NUCLEO-L073RZ development platform running the STSW-LLL007FW firmware.
    • E5V connector to supply STM32 Nucleo board and additional panels
    • Supplied with a range of default patterns
    • GUI for advanced driver configuration and customized pattern generation
    • CE Certified
    • RoHS and China RoHS compliant
    • WEEE compliant (2012/19/UE RAEE II

Recommended for you

Embedded Software

    • Part Number

      Firmware for the STEVAL-LLL007V1 evaluation kit featuring the LED1202 LED driver

      GUI for the LED1202 LED driver evaluation kit

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3806
      Evaluation kit for the LED1202 12-channel low quiescent current LED driver
      1.0
      330.37 KB
      PDF
      DB3806

      Evaluation kit for the LED1202 12-channel low quiescent current LED driver

Hardware Resources

    • Description Version Size Action
      STEVAL-LLL007V1 GERBER 1.0
      130.8 KB
      ZIP

      STEVAL-LLL007V1 GERBER

    • Description Version Size Action
      STEVAL-LLL007V1 BOM 1.0
      38.38 KB
      PDF

      STEVAL-LLL007V1 BOM

    • Description Version Size Action
      STEVAL-LLL007V1 SCHEMATICs 1.0
      236.58 KB
      PDF

      STEVAL-LLL007V1 SCHEMATICs

Legal

    • Description Version Size Action
      Terms of use 1.7
      57.54 KB
      PDF

      Terms of use

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-LLL007V1
Active
CARD Industrial Ecopack2 Yes

STEVAL-LLL007V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
