STEVAL-MKI226KA

Active
Design Win

3-axis digital accelerometer sensor kit based on AIS25BA

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

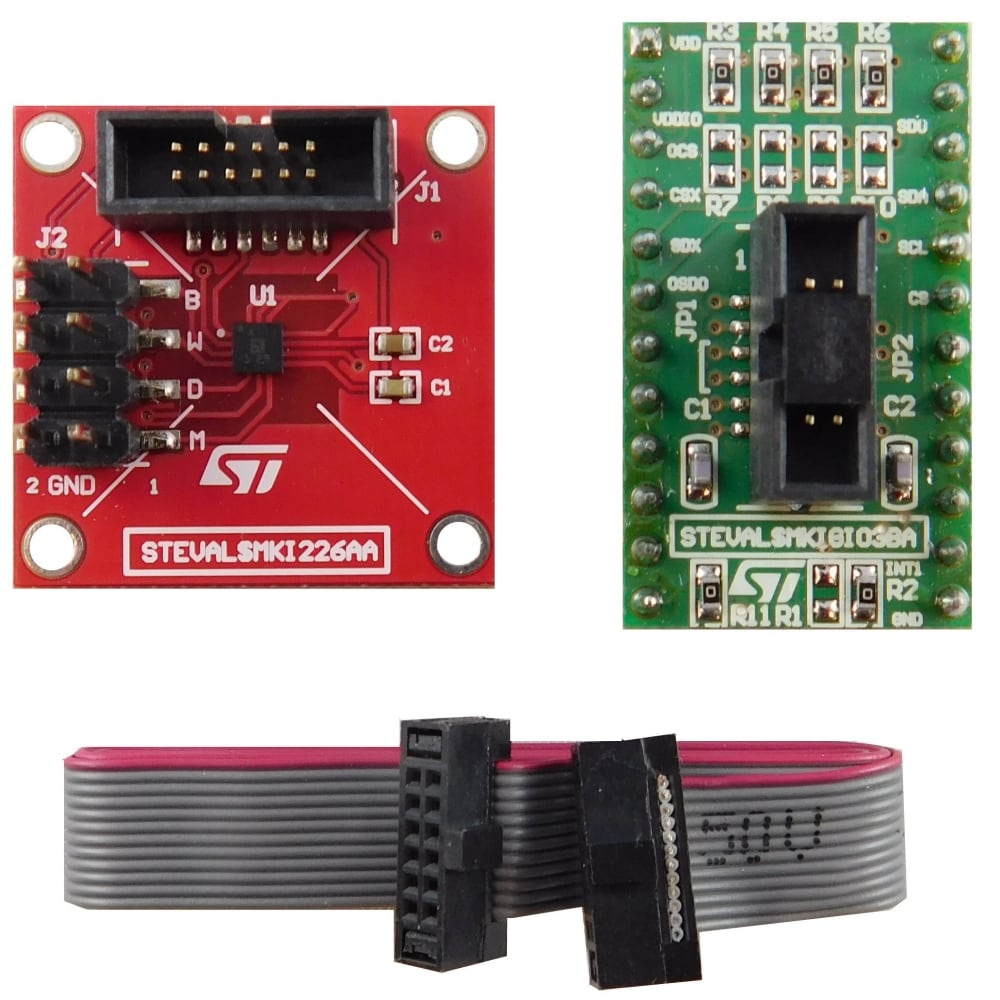

The STEVAL-MKI226KA evaluation kit is based on the AIS25BA 3-axis digital accelerometer. The kit is connected to a generic adapter board (STEVAL-MKIGI03B) through a flat cable, to make it compatible with the STEVAL-MKI109V3.

The sensing board can be directly attached to the system to be measured through the provided adhesive.

The AIS25BA is soldered exactly in the center of the board.

The STEVAL-MKIGI03B can be plugged into a standard DIL 24 socket. The kit provides the complete AIS25BA pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.

The STEVAL-MKI109V3 motherboard supports this adapter. The motherboard includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.

It is possible to use the downloadable graphical user interface (Unico-GUI) or dedicated software routines for customized applications.

The adapter board can be also plugged into the X-NUCLEO-IKS01A2, X-NUCLEO-IKS01A3, and X-NUCLEO-IKS02A1 expansion boards.

  • All features

    • User-friendly AIS25BA evaluation kit
    • Complete AIS25BA pinout for a standard DIL 24 socket
    • Fully compatible with the STEVAL-MKI109V3 motherboard
    • RoHS compliant
