Product overview
Description
The STEVAL-MKI241KA evaluation kit is based on an ad hoc PCB, mounting the LSM6DSV16B inertial module.

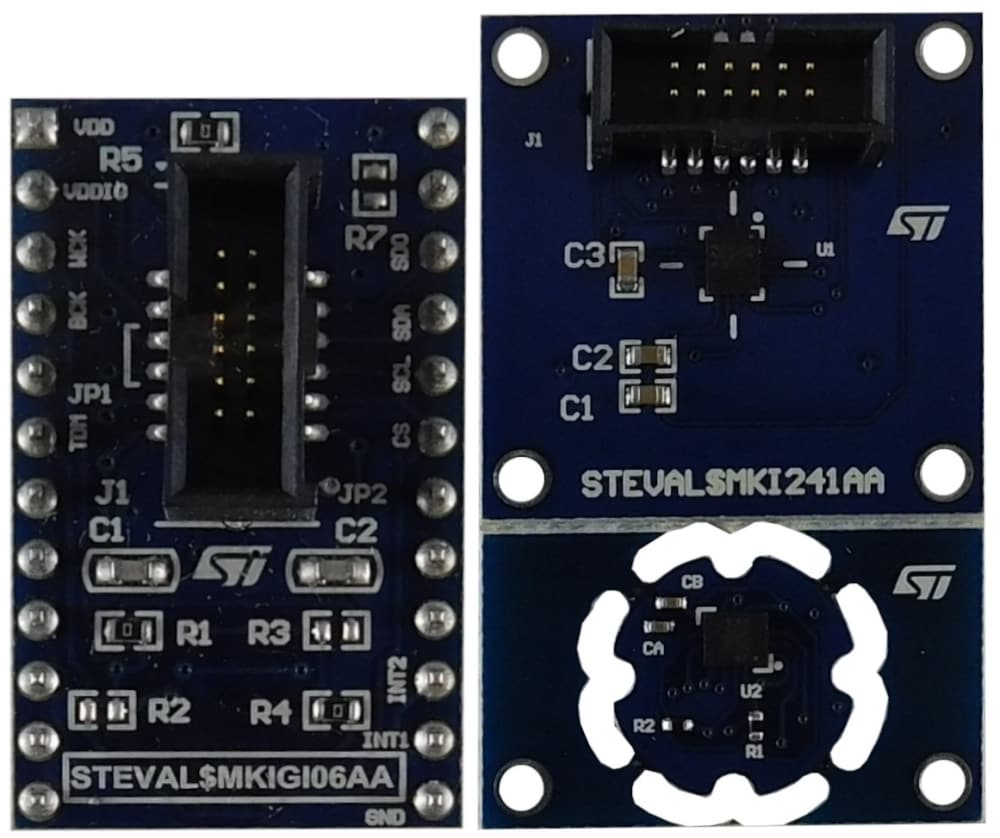

There are two different boards inside STEVAL-MKI241KA. One can be used as a standard application board and a small adapter can be put inside the earphone to verify the bone conduction feature.
Both boards can be connected with the STEVAL-MKI109V3 via STEVAL-MKIGI06A interface board.
The kit provides the complete LSM6DSV16B pinout and comes ready-to-use with the required decoupling capacitors on the VDD and VDDIO power supply line.
This adapter is supported by the STEVAL-MKI109V3 mother board, which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico-GUI), or dedicated software routines for customized applications.
It is also possible to plug the board into an X-NUCLEO-IKS01A3 expansion board.
-
All features
- User friendly LSM6DSV16B board
- Complete LSM6DSV16B pinout for a standard DIL 24 socket
- Fully compatible with the STEVAL-MKI109V3 motherboard
- RoHS compliant
