Product overview
Description
The STEVAL-MKI258KA is an adapter kit designed to facilitate the evaluation of the ISM6HGK256X 6-axis inertial measurement unit (IMU).

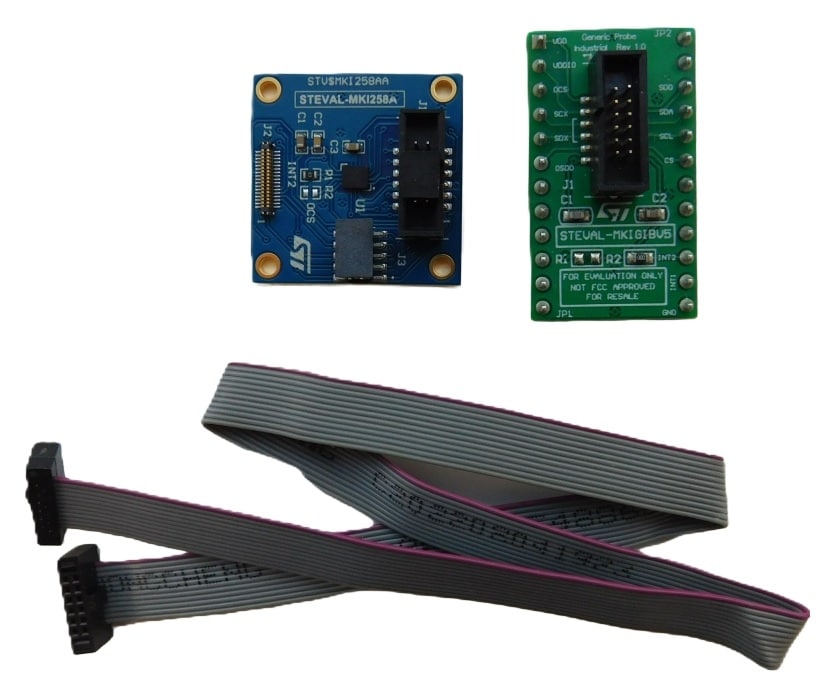

The kit is composed by a generic DIL24 adapter board (STEVAL-MKIGIBV5), a flat cable, and a square PCB mounting the ISM6HG256X 6-axis IMU. The presence of this square PCB ensures to put the sensor board on the system to be measured.
The sensor is soldered precisely in the center of the square PCB to conveniently mount the board on the equipment used for the analysis through double-sided adhesives.
The STEVAL-MKI258KA can be mounted using the holes located in each corner of the PCB.
The STEVAL-MKIGIBV5 can be plugged into a standard DIL-24 socket. The kit provides the complete ISM6HGK256X pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line.
The STEVAL-MKI258KA is supported by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable MEMS Studio graphical user interface, or dedicated software routines for customized applications.
It is also possible to plug the kit on STEVAL-STWINBX1 using an ad hoc connector mounted on the STEVAL-MKI258A board.
-
All features
- User-friendly ISM6HGK256X board
- Complete ISM6HGK256X pinout for a standard DIL 24 socket
- Fully compatible with STEVAL-MKI109D evaluation platform
- RoHS compliant
