STEVAL-STWINWFV1

Active

Wi-Fi expansion for the SensorTile Wireless Industrial Node (STWIN) kit

Download databrief

Order from our distributors

Check availability
Overview
Resources
Tools & Software
Solutions
eDesignSuite
Quality & Reliability
Sales Briefcase
Get Started
Sample & Buy
Partner products

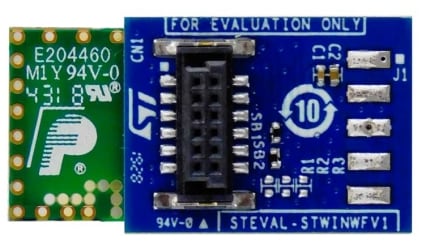

  • The STEVAL-STWINWFV1 expansion board adds 2.4 GHz Wi-Fi connectivity to the SensorTile Wireless Industrial Node (STWIN) kit (STEVAL-STWINKT1).

    Application examples that take advantage of this expansion board can be found in STSW-STWINKT01 firmware package as well as in the FP-IND-PREDMNT1 Predictive Maintenance Function Pack.

    Key Features

    • Wi-Fi adapter for STWIN (STEVAL-STWINKT1)
    • Plugs into STWIN core system board through dedicated 12-pin connector
    • Single 3.3 V power supply input
    • ISM43362-M3G-L44-E Wi-Fi module:
      • 802.11 b/g/n Compatible based on Broadcom MAC/Baseband/Radio device
      • Fully contained TCP/IP stack
      • Host interface: SPI up to 25 MHz
      • Network features ICMP ( Ping), ARP, DHCP,TCP, UDP
      • Low power operation (3.3 V supply) with built-in low power modes
      • Secure Wi-Fi authentication WEP-128, WPA-PSK (TKIP), WPA2-PSK
      • CE certified
      • FCC certified
      • IC certified
    • RoHS and China RoHS compliant
    • WEEE compliant
