Product overview
Description

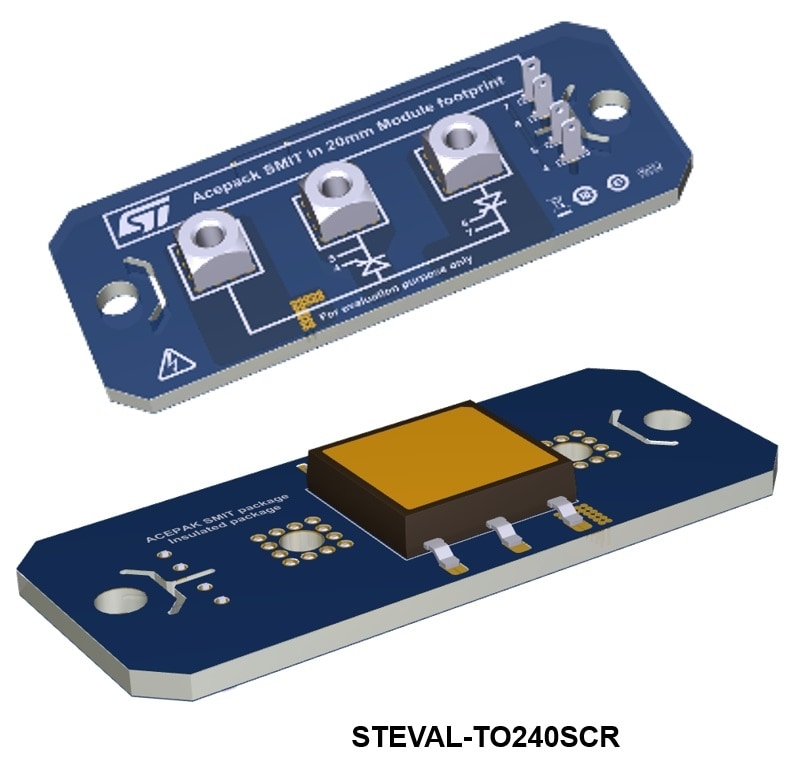

The STEVAL-TO240SCR is a ready-to-use interface board that features a 60 A dual thyristor. The evaluation board allows evaluating the ACEPACK SMIT package using an existing heatsink and similar screw connection of the TO240 module.
The evaluation board includes four snap-on connectors so that it can directly use the driving wires connected in the TO240 package.
The key product, STTN6050H-12M1Y, is an automotive-qualified 60 A 1200 V thyristor assembled in a surface-mounted ACEPACK SMIT package.
It offers 600 A surge peak current and overvoltage robustness VDSM up to 1400 V. It also has an optimized TAB to lead creepage distance of 4 mm. The lead-to-lead creepage distance is 6.9 mm.
This evaluation board is provided as an alternative to SKKT series, MCMA series, and VSKT series of dual SCR.
-
All features
- Ready to test TO240 interface bord
- Same pinout as TO240 SCR module
- Easy mount on existing TO240 heatsink
- Same thermal impedance (junction to case) versus TO240
- Thinner profile than TO240
- High current capability
- ACEPACK SMIT is compatible with automatic SMD assembly
