STEVAL-TSP005V2

Active

Power over Ethernet - PD converter with 5 V 2 A output, standard IEEE 802.3af compliant

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase

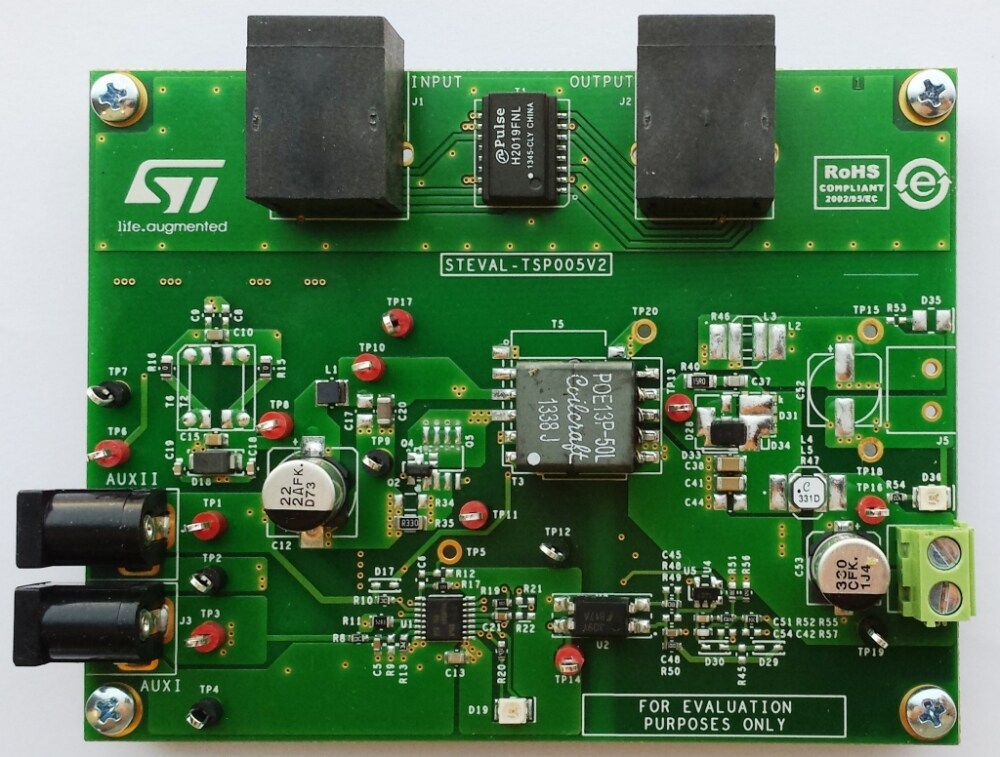

  • This document focuses on a reference design for a simple, low cost 5 V 2 A flyback converter based on the PM8800A device.

    The PM8800A is a highly integrated device embedding an IEEE 802.3af compliant “Powered Device” (PD) interface together with a PWM controller.
    It can be successfully used in all low power, low cost PoE applications.

    Key Features

    • IEEE 802.3af compliant PD interface
    • Works with power supplied from Ethernet LAN cables or from local auxiliary sources
    • Line input voltage range: 40 Vdc to 60 Vdc output voltage: 5 Vdc ± 5%
    • Output current: 2 A
    • Peak-to-peak output ripple: 30 mV
    • Efficiency DC-DC full-load: > 86%
    • Efficiency overall peak: > 84%
    • Transient response ΔVoutpk-pkto 50% load step: < 300m Vpp
    • ΔV in load line case: < 0.5%

Recommended for you

Related Applications

Lighting and Controls

Power Supplies and Converters

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-TSP005V2
Active
CARD Industrial Ecopack2 -

STEVAL-TSP005V2

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
