Product overview

Description

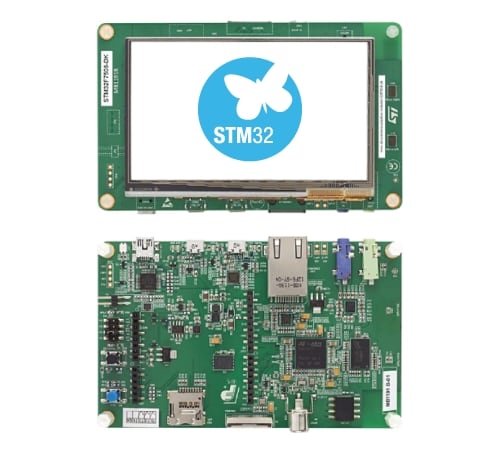

The STM32F7508-DK Discovery kit allows users to develop and share applications with the STM32F7 Series microcontrollers based on the Arm^® Cortex^®-M7 core.

The Discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video, and high-speed connectivity features.

The ARDUINO^® connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

All features
STM32F750N8H6 microcontroller featuring 64 Kbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package

4.3-inch 480x272 color LCD-TFT with capacitive touch screen

Ethernet connector compliant with IEEE-802.3-2002

USB OTG HS FS

SAI audio codec

2 ST-MEMS digital microphones

128-Mbit Quad-SPI Flash memory

128-Mbit SDRAM (64 Mbits accessible)
1 user and reset push-button

Board connectors:

Camera 8 bit

USB with Micro-AB

Ethernet RJ45

SPDIF RCA input

Audio jack for external speakers and microphone

microSD™ card

ARDUINO^® Uno V3 expansion connectors

RF-EEPROM daughterboard expansion connectors

Flexible power supply options:

ST-LINK USB V_BUS or external sources

Power supply output for external applications: 3.3 V or 5 V

On-board ST-LINK/V2-1 debugger/programmer with USBre-enumeration capability: mass storage, Virtual COM port and debug port

Comprehensive free software libraries and examples available with the STM32Cube MCU Package

Support of by a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil^® and STM32CubeIDE
Read more Read less
