Product overview

Description

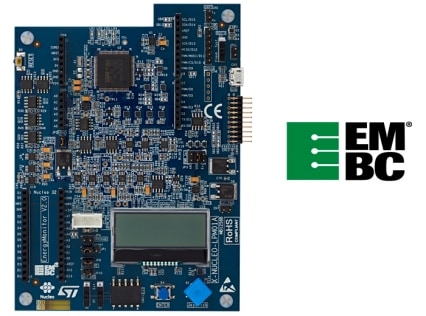

The X-NUCLEO-LPM01A is a 1.8 V to 3.3 V programmable power supply source with advanced power consumption measurement capability.

It performs consumption averaging (static measurement up to 200 mA) as well as real-time analysis (dynamic measurement up to 50 mA with 100 kHz bandwidth).

The X-NUCLEO-LPM01A operates either in standalone mode (using its LCD, joystick and button to display static measurements), or in controlled mode connected to host PC via USB (using the STM32CubeMonitor-Power software tool with its comprehensive graphical user interface).

It can be used to supply and measure the consumption of STM32 Nucleo-32, Nucleo-64 or Nucleo-144 boards, using Arduino connectors. Alternatively, it supplies and measures the consumption of any target connected by wires via the basic connector.

All features
STM32L496VGT6 microcontroller featuring Arm^® Cortex^®-M4 core at 80 MHz / 100 DMIPS and three 12-bit ADC at 5 Msps

Programmable voltage source from 1.8 V to 3.3 V

Static current measurement from 1 nA to 200 mA

Dynamic measurements:

100 kHz bandwidth, 3.2 Msps sampling rate

Current from 100 nA to 50 mA

Power measurement from 180 nW to 165 mW

Energy measurement computation by power measurement time integration

Execution of EEMBC ULPMark™ tests

Mode standalone:

Monochrome LCD, 2 lines of 16 characters with backlight

4-direction joystick with selection button

Enter and Reset push-buttons

Mode controlled:

Connection to a PC through USB FS micro-B receptacle

Command line (virtual COM port) or

STM32CubeMonitor-Power PC tool.

4 status LEDs

Target board connectors:

Arduino^™ Uno and Nano connectors

Basic connector (white): 4 wires

Flexible input power-supply options:

USB micro-B (VBUS)

External power connector (7 V to 10 V)

Arduino Uno and Nano connectors (pin 5 V)
Read more Read less
