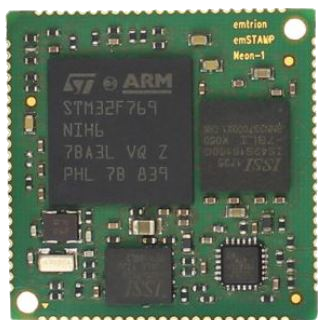

emSTAMP-Neon-CM7 is a compact solder-on computer-on-module designed for demanding embedded applications that require real-time performance and energy efficiency. It combines long-term availability with a robust industrial footprint, which makes it well suited for products with extended life cycles. Based on an STM32 device from ST, it also benefits from the wider STM32Cube software ecosystem to simplify development and integration.
Features and benefits
- STM32F769NI microcontroller with Arm® Cortex®-M7 core
- Up to 216 MHz clock frequency with floating-point unit (FPU) support
- Up to 1 Mbyte flash and 512 Kbyte SRAM on chip
- Ethernet, CAN, USB 2.0 host, I²C, SPI, UART, ADC, DAC, SDIO, SAI
- RGB18 LCD support, microSD™, JTAG, and 6 GPIOs
- 32 Mbyte SDRAM and 16 Mbyte quad-SPI NOR flash
- Compact 28 mm x 28 mm module for space-constrained designs
- Extended temperature option for industrial environments
