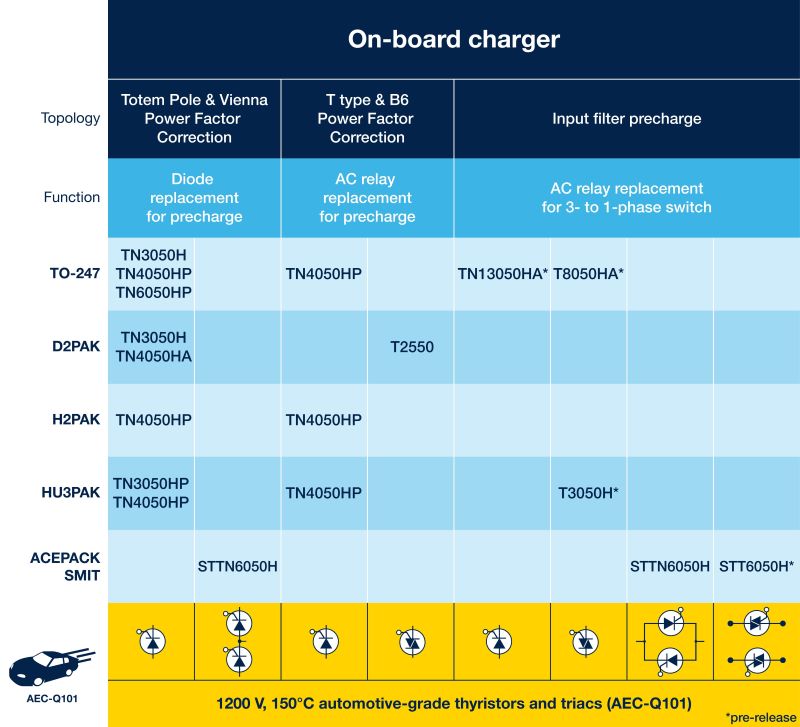

ST Automotive Thyristors offer 1200V blocking capability at 150°C junction temperature. They are fully qualified according to AEC-Q101 specifications. Ranging from 30 to 60 A, ST’s EV SCRs are designed for 2 to 22 kW OBC (on-board chargers) bridge or bridgeless topologies in EV (Electric Vehicles). They are particularly well suited for power factor correction.
Thanks to optimized surge current capability and high turn-on performance, our Automotive Thyristors also fit applications such as belt starter generators and capacitor discharge circuits.
Offering improved power density, AEC-Q101 Thyristors can also fit AC-DC rectification in battery chargers and UPS as well as soft starters in motor drives or solid-state relays.
Fully rated at 150°C and housed in D2PAK or TO-247 packages, these on-board charger thyristors offer robust switching, 1kV/µs immunity up to 1400 V surges, and are fully aligned with AEC-Q101 requirements.
Designed for automotive applications including stationary battery chargers, the TN6050HP-12WY SCR offers 1 kV/µs immunity and 1400 V surge protection, making it ideal for safely handling capacitor discharges.

Recommended for you
- TN6050HP-12WY 1200 V, 60 A Automotive Grade AEC-Q101 SCR Thyristor
- TN3050H-12GY-TR 1200 V, 30 A Automotive Grade AEC-Q101 SCR Thyristor
- TN4050HP-12WY 1200 V, 40 A Automotive Grade AEC-Q101 SCR Thyristor
- TN4050HP-12GY-TR 1200 V, 40 A Automotive Grade SCR Thyristor in D2PAK package
- TN5050H-12WY 1200 V, 50 A Automotive Grade AEC-Q101 SCR Thyristor
- TN4050HP-12G2YTR 1200 V, 40 A Automotive Grade AEC-Q101 SCR Thyristor in D2PAK HV package
- TN4050HP-12L2Y 1200 V, 40 A Automotive Grade AEC-Q101 SCR Thyristor in HU3PAK
- STTN6050H-12M1Y 60 A 1200 V thyristor controlled half bridge in ACEPACK SMIT module
- TN3050H-12WY 1200 V, 30 A Automotive Grade AEC-Q101 SCR Thyristor
- TN4050HA-12GY 1200 V , 40 A Automotive SCR Thyristor in D2PAK package
- STTD6050H-12M2Y 60 A 1200 V half-controlled bridge rectifier in ACEPACK SMIT module
