MEMS and other microtechnologies: comparative analysis
The field of microtechnology includes a range of techniques for creating miniature devices and systems. While micro-electromechanical systems (MEMS) are the most prominent, other specialized microtechnologies have critical roles by using different physical principles and fabrication methods. Understanding MEMS, micro-optics, microfluidics, and related fields is essential. Distinguishing between these technologies is key to selecting the optimal solution for a design challenge.
This article provides a comparative analysis of MEMS technology and other key microtechnologies. It explores the fundamental principles, fabrication techniques, and primary application domains of each, offering engineers a structured framework for understanding their strengths and how they can converge to create more powerful and integrated systems.
Defining the technologies: functional comparison
At their core, all microtechnologies involve manufacturing structures on the micrometer scale. However, they differ in their primary function and the type of energy or substance they manipulate.
MEMS (micro-electromechanical systems)
MEMS technology integrates moving mechanical parts and electronic circuits on a single silicon substrate. It is the bridge between the digital world of electronics and the physical world of motion, force, and pressure.
- Primary function: sense physical phenomena such as acceleration, rotation, or pressure, or actuate by moving, vibrating or pumping.
- Core components: microscopic mechanical structures including proof masses, diaphragms, resonators, coupled with an application-specific integrated circuit (ASIC) for signal processing.
- Key applications: Inertial sensing in smartphones (accelerometers,IMUs), safety systems in vehicles (automotive sensors, pressure).
Micro-optics (MOEMS)
Micro-opto-electromechanical systems (MOEMS) are MEMS-based systems in which optical functionality is dominant, integrating components such as mirrors, lenses, and gratings at the micro-scale. They are often combined with MEMS actuators to manipulate light.
- Primary function: steer, filter, switch, or modulate light beams.
- Core components: micro-mirrors, micro-lenses, optical switches, and diffraction gratings.
- Key applications: digital micromirror devices (DMDs) in projectors, optical cross-connects for fiber-optic communication networks, and miniaturized spectrometers.
Microfluidics
Microfluidics deals with the behavior, control, and manipulation of fluids in channels with dimensions of tens to hundreds of micrometers. It enables the creation of lab-on-a-chip systems and may include MEMS-based actuators in some implementations.
- Primary function: precisely control and analyze small volumes of fluids (liquids or gases).
- Core components: micro-channels, pumps, valves, and mixers fabricated in materials like glass, silicon, or polymers.
- Key applications: dpoint-of-care medical diagnostics, DNA analysis (PCR, polymerase chain reaction), drug delivery systems, and inkjet printer heads.
A comparative analysis for engineers
The choice of microtechnology depends entirely on the problem an engineer is trying to solve. The following table provides a high-level comparison of their key characteristics:
| MEMS | Micro-optics (MOEMS) | Microfluidics |
|---|---|---|---|
| Primary domain | Mechanical and electrical | Optical and mechanical | Fluidic and chemical/biological |
| Energy/substance | Motion, force, pressure | Photons (light) | Picoliters of fluids |
| Fabrication | Silicon-based (photolithography, etching) | Similar to MEMS, with optical coatings | Micromolding, etching (glass/silicon) |
| Integration | Tightly integrated with ASICs for digital output | Often coupled with MEMS actuators for control | Integrated with electronic sensors for analysis |
| Key metric | Sensitivity, stability, power consumption | Switching speed, optical loss, resolution | Flow rate, sample volume, analysis time |
The synergy of microtechnologies: convergence and integration
While these technologies are distinct, the most powerful innovations often arise from their convergence. Modern complex systems frequently combine multiple microtechnologies to achieve their goals.
Example 1: a smartphone projector (pico-projector)
A miniaturized projector is a perfect example of MOEMS and MEMS working in concert.
- Micro-optics: a DMD chip contains an array of millions of microscopic mirrors.
- MEMS actuation: each mirror is a MEMS device that can be individually tilted by electrostatic actuation.
- System function: by rapidly tilting these mirrors, light from an LED or laser source is reflected either towards or away from the projection lens, creating a high-resolution digital image. The system manipulates light (micro-optics) using moving mechanical parts (MEMS).
Example 2: a point-of-care diagnostic device
A lab-on-a-chip for medical testing integrates microfluidics with other sensor technologies.
- Microfluidics: a disposable cartridge uses micro-channels to transport a tiny blood sample and mix it with reagents.
- MEMS or other sensors: as the sample flows through a detection zone, it might pass over a MEMS pressure sensors to measure flow rate, or an optical sensor could measure a change in color indicating a positive result. In more advanced systems, a biosensor could detect the presence of specific proteins.
- System function: the device handles fluids and then uses electronic or optical sensors for analysis.
Example 3: an advanced inertial measurement unit (IMU)

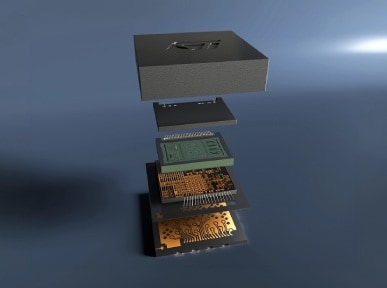

High-performance IMUs, like our iNEMO inertial modules, are a prime example of system-in-package (SiP) integration.
- Multiple MEMS devices: a single package contains a 3-axis accelerometer, a 3-axis gyroscope, and often a magnetometer.
- ASIC integration: co-packaged with a sophisticated ASIC for signal conditioning, calibration, and sensor fusion algorithms.
- System function: by combining multiple types of MEMS motion sensors, the module provides more accurate and robust measurement of orientation and movement than any single sensor could achieve alone.
Choosing the right tool for the micro-scale job
MEMS technology, focused on sensing and actuating physical phenomena, has become the most widespread and commercially successful microtechnology. However, it is part of a larger family of powerful micro-scale engineering disciplines. Micro-optics controls light, while microfluidics manages liquids and gases.
For electronic engineers, the challenge is rarely a choice between MEMS and another microtechnology, but rather an understanding of which tool is needed for the task. By understanding the distinct capabilities and potential of the combination of MEMS, micro-optics, microfluidics and advanced electronics, engineers can design sophisticated, integrated, and capable systems.
