  • The X-CUBE-53L1A1 software package is an expansion of the STM32Cube, to go with the X-NUCLEO-53L1A1 expansion board for STM32 Nucleo.

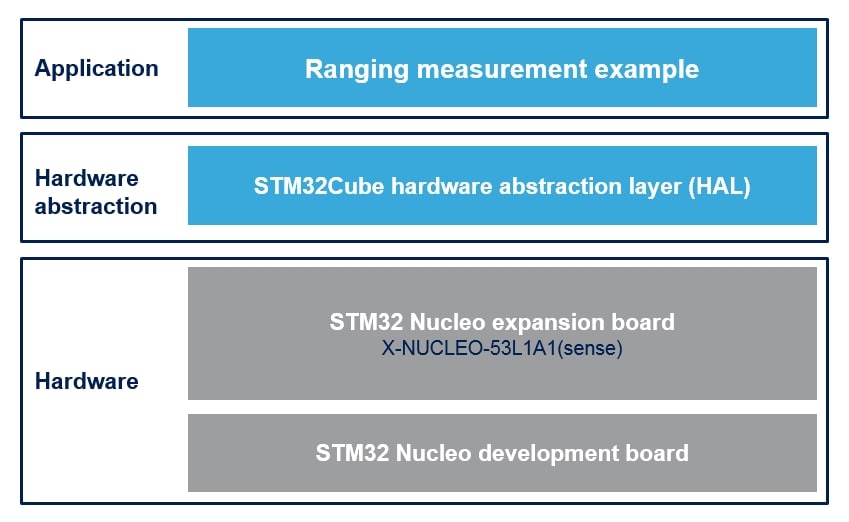

    The source code of this package is based on STM32Cube and is aligned with the “multi-platform” file and directory structure to ease portability and code sharing across different STM32 MCU families.
    The VL53L1X is the latest product based on ST’s patented FlightSenseTM technology. This is a ground-breaking technology allowing absolute distance to be measured independent of target reflectance. Instead of estimating the distance by measuring the amount of light reflected back from the object (which is significantly influenced by color and surface), the VL53L1X precisely measures the time the light takes to travel to the nearest object and reflect back to the sensor Time-of-Flight (ToF).

    Key Features

    • Driver layer (VL53L1X API) for complete management of the VL53L1X long-distance ranging sensor integrated in theX-NUCLEO-53L1A1 expansion board
    • Easy portability across different MCU families, on the strength of STM32Cube
    • Free, user-friendly license terms
    • Example code for getting started with a simple ranging measurement
    • Data logging capabilities through serial com over USB.

Get Software

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3523
      Long distance ranging Time-of-Flight sensor software expansion of STM32Cube
      2.0
      150 KB
      PDF
      DB3523

      Long distance ranging Time-of-Flight sensor software expansion of STM32Cube

    • Description Version Size Action
      UM2359
      Getting started with X-NUCLEO-53L1A1 long distance ranging ToF sensor expansion board based on VL53L1X for STM32 Nucleo
      1.0
      2.19 MB
      PDF
      UM2371
      Getting started with the X-CUBE-53L1A1 Time-of-Flight long distance ranging sensor software expansion for STM32Cube
      1.1
      1.01 MB
      PDF
      UM2359

      Getting started with X-NUCLEO-53L1A1 long distance ranging ToF sensor expansion board based on VL53L1X for STM32 Nucleo

      UM2371

      Getting started with the X-CUBE-53L1A1 Time-of-Flight long distance ranging sensor software expansion for STM32Cube
