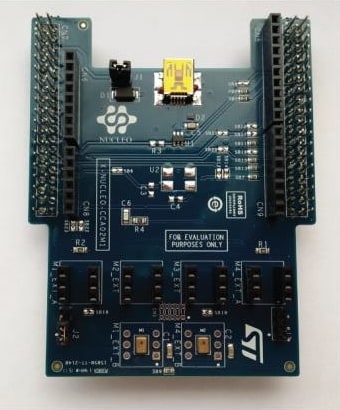

  • The X-NUCLEO-CCA02M1 is an evaluation board based on digital MEMS microphones. It is compatible with the ST morpho connector layout, and is designed around STMicroelectronics MP34DT01-M digital microphones. It has two microphones soldered onto the board and is compatible with digital microphone coupon boards such as STEVAL-MKI129Vx and STEVAL-MKI155Vx.

    The X-NUCLEO-CCA02M1 allows synchronized acquisition and streaming of up to 4 microphones through I²S, SPI or DFSDM peripherals. It represents a quick and easy solution for the development of microphone-based applications as well as a starting point for audio algorithm implementation.

    Key Features

    • 2 on-board MP34DT01-M digital MEMS microphones
    • 6 slots to plug in digital microphone coupon boards such as STEVAL-MKI129Vx and STEVAL-MKI155Vx
    • Synchronized acquisition and streaming of up to 4 microphones
    • Free comprehensive development firmware library and audio capture plus USB streaming sample application which is compatible with STM32Cube firmware
    • Compatible with STM32 Nucleo boards
    • Equipped with ST morpho connector (upwards and downwards)
    • Equipped with Arduino UNO R3 connector (upwards) to allow multiple boards
    • RoHS compliant
