Evaluation Board for L99H02XP DC Motor Control IC

Download databrief Order Direct
Overview
eDesignSuite
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

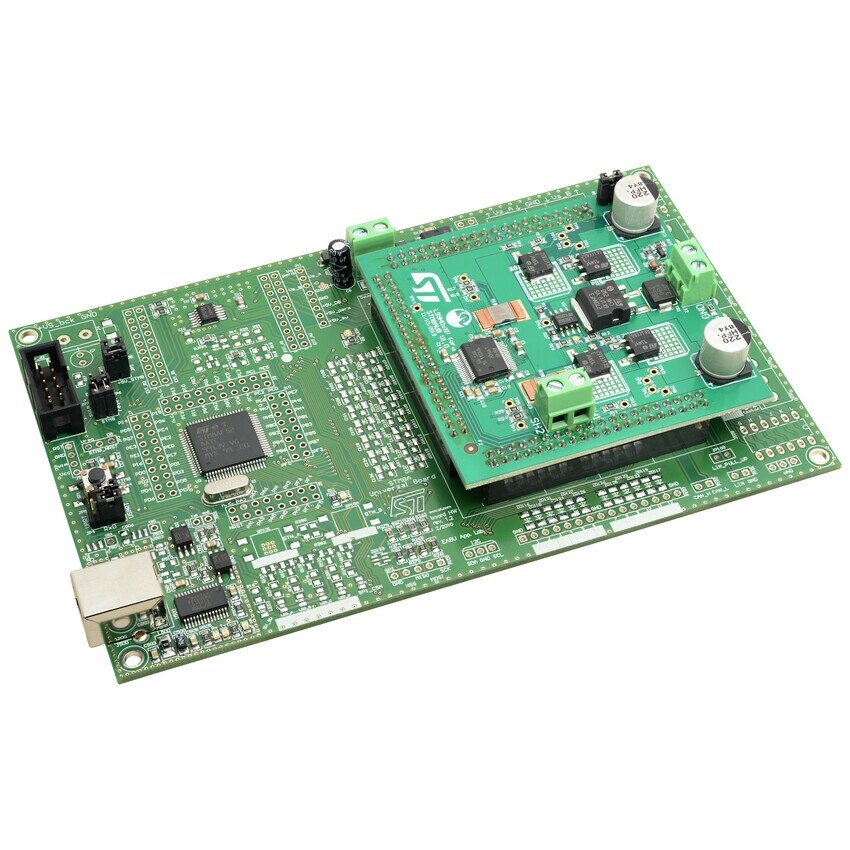

EVAL-L99H02XP is an evaluation board designed for DC motor control in automotive applications. It is composed by a motherboard and a daughterboard on which the L99H02XP is preassembled. The motherboard, based on STM8A microcontroller, provides the logic section for monitoring and driving the L99H02XP assembled in the daughterboard.
ST provides a dedicated user-friendly software with a Graphic User Interface (GUI), with the aim to make the board usage and settings simpler. This enables the user to set L99H02XP parameters and registers, simultaneously showing real-time device diagnostic information like motor evolution, free-wheeling, board temperature and much more.
  • All features

    • Operating supply voltage from 6 V to 28 V
    • Central 2 stage charge pump 100 % duty cycle
    • Full RDSon down to 6 V (normal level MOSFETs)
    • Control of reverse battery protection MOSFET
    • Charge pump current limited
    • PWM operation up to 30 kHz
    • SPI interface
    • Current sense amplifier/free configurable
    • Zero adjust for end of line trimming
    • Power management: programmable free-wheeling
    • Sensing circuitry of external MOSFETs with embedded thermal sensors
