Product overview
Description

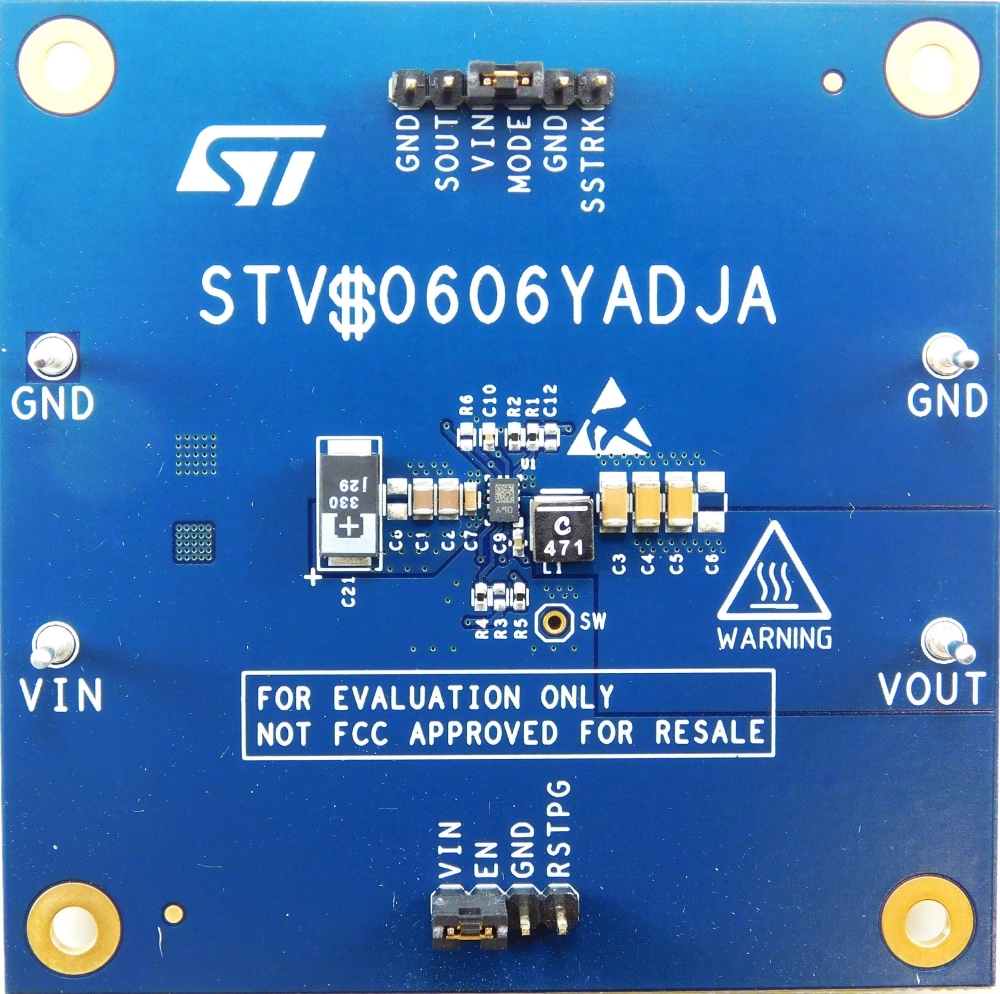

The STEVAL-0606YADJ product evaluation board is a step-down switching power supply based on the DCP0606Y regulator in a QFN11 2x3mm package.
The programmed switching frequency is 2.25 MHz with dithering and it can be adjusted by applying an external clock on MODE/SIN pin or by changing the frequency programming resistor.
The DCP0606Y is a high efficiency monolithic step-down synchronous switching regulator designed to deliver up to 6A continuous current.
The IC operates from 2.9 V to 6 V input voltage. DCP0606Y features low-resistance integrated N-channel MOSFETs and diode emulation working mode for optimum efficiency over all the loading range.
The integrated 0.6 V reference allows the regulation of output voltages with ±1.5% accuracy over temperature variations.
The switching frequency is externally adjustable between 1.8 MHz and 4 MHz.
The soft-start duration can be adjusted with an external capacitor or the same SS/TRK pin can be used for output voltage sequencing while the RST/PGOOD pin provides real-time information on the output voltage.
-
All features
- 5 V (up to 6 V) operating input voltage
- Step-down (buck) conversion
- 3.3 V programmed output voltage
- 6 A DC maximum output current
- 2.25 MHz selected switching frequency with dithering
- Dynamic low consumption mode to low noise mode selection
- Programmable soft-start
- Synchronization to external clock
- Internal compensation network
- Auto recovery overcurrent, overvoltage, and thermal protection
- RoHS and China RoHS compliant
- WEEE compliant (2012/19/UE RAEE II)
