STEVAL-ISA177V1

Active

5 V, 0.85 A flyback converter using VIPer™ Plus - VIPer01

Download databrief Order Direct
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

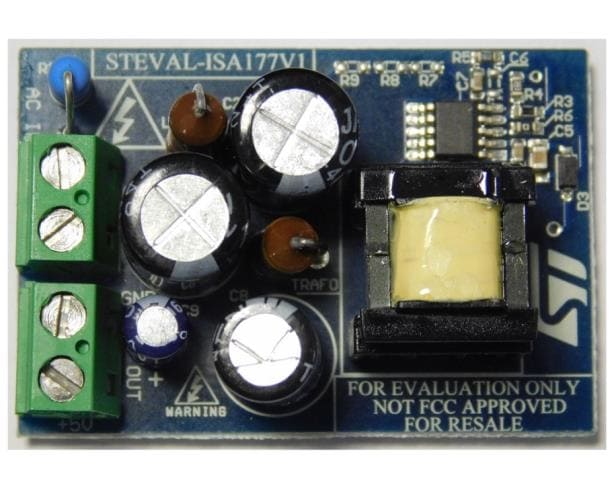

The STEVAL-ISA177V1 evaluation board implements a wide-range converter in flyback non isolated topology, delivering 0.85 A on a 5 V output for general purpose applications. The core of the application is the new VIPer01 offline high voltage converter from the VIPerPlus range that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control.
The main characteristics of the evaluation board are its single layer, small size with minimal BOM, high efficiency and low standby consumption.
  • All features

    • Universal AC main input voltage range: 85VAC to 265VAC
    • Output range: 5 V / 0.85 A
    • Rated output power: 4.25 W
    • Input power in standby @ 230 VAC: < 9 mW
    • Active mode efficiency: > 74%
    • EMI: according to EN55022-Class-B
    • RoHS compliant
