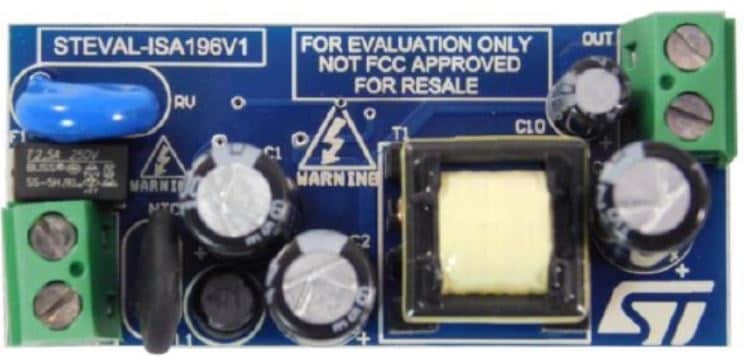

  • The STEVAL-ISA196V1 evaluation board implements a flyback converter (5 V / 1.2 A) wide range mains developed for general purpose applications.

    The core of the application is the VIPer11, a new off-line high voltage converter from the VIPerPlus family.
    The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control.
    The main characteristics of the evaluation board are its single layer, small size and minimal BOM, high efficiency and low standby consumption.

    Key Features

    • Universal AC main input voltage range: 85VAC to 265VAC
    • Output voltage: 5 V
    • Output current: 1.2 A
    • Rated output power: 6 W
    • No load input power @230 VAC: < 10 mW
    • Active mode efficiency: > 78%
    • EMI: according to EN55022-Class-B
    • RoHS compliant

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Board production status
Order from Distributors
Order from ST
STEVAL-ISA196V1 VIPER114LS
Active
37.5 1 EAR99 ITALY - Check Availability
