Product overview
Description

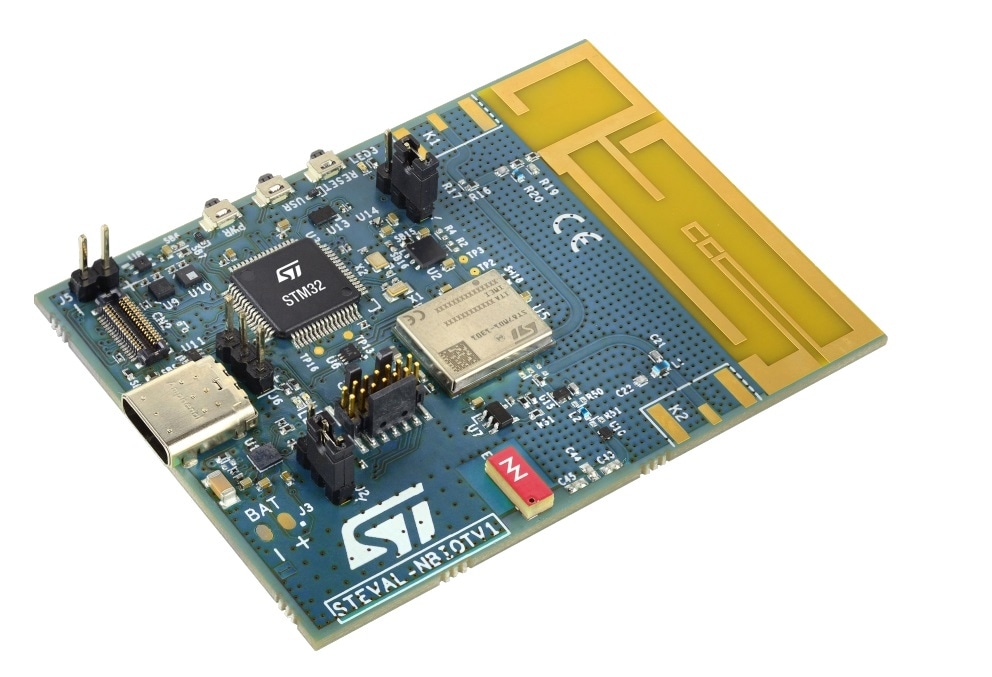

The STEVAL-NBIOTV1 is a compact, battery-powered evaluation platform and reference design tailored for asset tracking, smart city applications, and metering.
Unlike typical reference designs that focus on a single component, the STEVAL-NBIOTV1 integrates multiple key elements: the ST87M01 ultracompact, low-power NB-IoT industrial module featuring additional ADC, GNSS, and Wi-Fi positioning capabilities; the STM32U585RI microcontroller; onboard sensors; and extra memory via a 32 Mbit serial SPI page EEPROM.
This all-in-one integration enables rapid IoT application development without requiring external add-ons or additional hardware.
An example application code is provided to optimize low-power operation and accelerate time-to-market.
Connectivity and location-based services are powered by the ST87M01 narrowband IoT (NB-IoT) and GNSS module.
Multiple communication interfaces are supported, including UART, I²C, and SPI. Efficient power management and data storage components are integrated, and an expansion connector allows easy addition of further functionalities.
Please note, the board does not include an STM32 debugger/programmer; a compatible debugger can be purchased separately. The recommended part numbers are STLINK-V3MINIE or, alternatively, STLINK-V3SET.
-
All features
- Multisensing wireless platform with cellular connectivity
- Ultracompact, low-power NB-IoT industrial module series with GNSS capability (ST87M01)
- Compact design with embedded antennas
- Custom PCB antenna for NB-IoT connectivity optimized for bands 3, 8 and 20
- Chip antenna for GPS (Ignion NN03-320)
- Nano-SIM card socket
- Ultralow power Arm Cortex®-M33 with FPU and TrustZone® at 160 MHz, 2048 Kbytes flash memory (STM32U585RI)
- Ultra low-power 32 Mbit serial SPI page EEPROM (M95P32-I)
- Sensors:
- Ultralow power 3-axis smart accelerometer (LIS2DUXS12)
- Low-power and high-precision MEMS nano pressure sensor: 260-1260 hPa absolute digital output barometer (LPS22DF)
- Temperature and humidity sensor (SHT40-AD1B)
- Expandable via 34-pin FPC connector
- Other components:
- LiPo battery 480 mAh
- Plastic box
- Ready to use SIM-Card
