Product overview
Key Benefits
System-level cost efficiency
High QE and MTF enable sharper images, support single-LED or low-power LED designs, and reduce assembly system cost.
Compact footprint
3.7 x 3.1 mm package, enabling discreet next-generation in-cabin camera designs and space-constrained installations.
In-cabin automotive compliance
Built for reliability, extended temperature range, and automotive cybersecurity and safety requirements (AEC-Q100 Grade 2, ISO 26262, ISO/SAE 21434).
Description

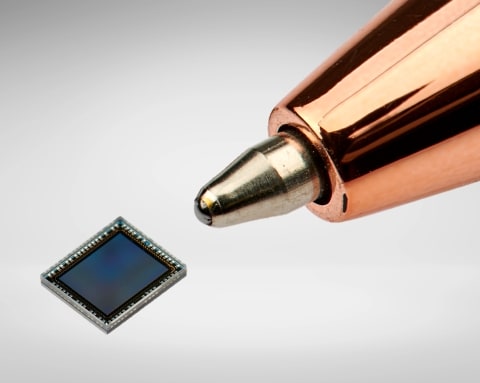

The VD56GA is a 1.1 megapixel global shutter image sensor with superhigh performance 2.43 μm pixels, allowing virtual 2-megapixels compliancy for automotive driver monitoring applications.
The virtual 2-megapixel performance is enabled by the ST DeepNIR technology featuring unrivaled MTF performance.
This ST DeepNIR technology offers excellent sensitivity with 43% QE at 940 nm enabling the VD56GA to operate with only one low-power LED.
The small CSP package footprint, more than three times smaller than the previous generation, combined with the ISO26262 and ISO21434 compliancy, makes VD56GA the optimal image sensor for driver monitoring systems.
-
All features
- Automotive compliancy
- AEC-Q100 grade 2 under qualification
- Operating junction temperature: -40°C to 125°C
- ISO26262 compliant to support ASILB system integration
- ISO21434 compliant with exhaustive cybersecurity features
- Ultracompact and high MTF 1.1 megapixel image sensor
- Global shutter architecture, 3D BGS stacked sensor 40 nm/65 nm
- 2.43 μm x 2.43 μm BSI pixel with ST DeepNIR technology
- 1.1 megapixel monochrome sensor (1152 x 920) operating at 60 frames per second
- Package: CSP
- Size: 3.7 mm x 3.1 mm
- Matrix: 6 x 5 balls
- Ball pitch: 550 μm
- Optical format < 1/5’’ (3.58 mm diag)
- µlens shift to match 20° linear CRA
- Unique imaging performance for virtual 2-megapixel performance
- Absolute quantum efficiency 41% @ 940 nm
- Outstanding MTF performance
- Easy and up-to-date integration
- Embedded autoexposure with tunable ROI
- 8- and 10-bit output (PWL 10 bit to 8 bit), YUV (monochrome) 422 8-bit
- Dual lane transmitter MIPI CSE FSED up to 1.5 Gbps per lane
- Three programmable GPIOs:
- Output synchronized with sensor integration periods
- PWM (pulse-width modulation) control
- Region of interest, two image context management
- Automatic dark calibration and defective pixel correction
- Image cropping
- Mirror/flip readout
- Analog binning 2 x 2 and analog subsampling ½
- Automotive compliancy
