VL53L4CX

Active
Design Win Education

Time-of-Flight (ToF) sensor with extended range measurement

Download datasheet Order Direct

Product overview

Description

Specifically designed for long-range, multitarget measurements, the VL53L4CX provides very accurate distance measurements up to 6 m with excellent results over short distances. A new generation laser emitter with 18° FoV improves performances under ambient light.

Thanks to ST's patented algorithms and innovative module construction, the VL53L4CX is also able to detect multiple objects within the FoV with depth understanding. ST histogram algorithms ensure cover glass crosstalk immunity beyond 80 cm and dynamic smudge compensation for targets below 80 cm.

Like all Time-of-Flight sensors based on ST's FlightSense technology, the VL53L4CX records an absolute distance measurement regardless of the target color and reflectance.

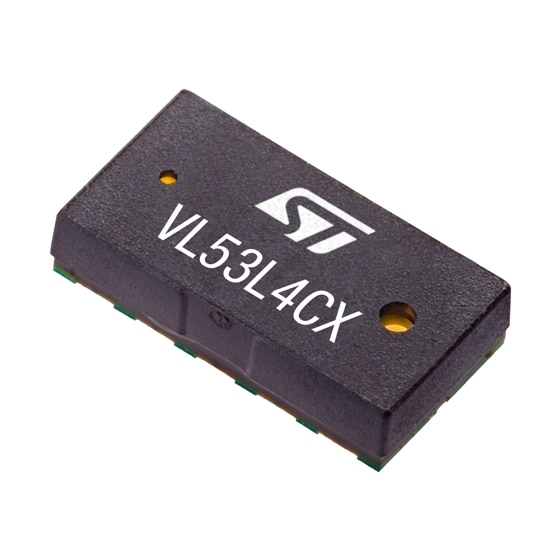

Housed in a miniature reflowable package, which integrates a SPAD (single photon avalanche diode) array, the VL53L4CX achieves the best ranging performance even when hidden behind a wide range of cover glass materials.

All of ST's Time-of-Flight sensors integrate a VCSEL (vertical cavity surface emitting laser) which emits a fully invisible 940 nm IR light, which is totally safe for eyes (Class 1 certification).

  • All features

    • Fast, accurate distance ranging
      • Histogram based technology
      • Distance measurement from 0 mm up to 6 m
      • Short distance linearity down to 10 mm
      • Major improvement in long distance-ranging performance across all targets and light levels
      • Field of view (FoV) of 18°
      • Multiobject detection capability
      • Targets beyond 80 cm range are immune to crosstalk from cover glass, and smudge
    • VL53L4CX is a fully integrated miniature module
      • Emitter: 940 nm invisible laser (VCSEL) and its analog driver
      • Low-power microcontroller running advanced digital firmware
      • Size: 4.4 x 2.4 x 1 mm
      • Pin-to-pin compatible with VL53L0X, VL53L1X, VL53L1CB, VL53L3CX, and VL53L4CD
    • Easy integration
      • Reflowable component
      • Live crosstalk correction
      • Part-to-part or generic shape crosstalk calibration available
      • Single power supply 2v8
      • Can be hidden behind cover glass
      • I²C interface (up to 1 MHz)
      • Full set of software drivers (Linux compatible) for turnkey ranging
      • Drivers are compatible with VL53L3CX ones

You might also like...

EDA Symbols, Footprints and 3D Models

STMicroelectronics - VL53L4CX

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

Symbols

Footprints

Footprints

3D model

3D models

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade Material Declaration**
VL53L4CXV0DH/1
Active
Optical Industrial Ecopack2
VL53L4CXV9DH/1
Active
Optical Industrial Ecopack2

VL53L4CXV0DH/1

Package:

Optical

Material Declaration**:

PDF XML

Marketing Status

Active

Package

Optical

Grade

Industrial

RoHS Compliance Grade

Ecopack2

VL53L4CXV9DH/1

Package:

Optical

Material Declaration**:

PDF XML

Marketing Status

Active

Package

Optical

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Swipe or click the button to explore more details Don't show this again
Part Number
Marketing Status
Budgetary Price (US$)*/Qty
Order from ST
Order from distributors
Package
Packing Type
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
Temperature (°C)
Operating Range Distance (m) (max)
Package size (mm)
min
max
VL53L4CXV0DH/1
Available at distributors

Distributor availability of VL53L4CXV0DH/1

Distributor Name
Region Stock Min. Order Third party link

Distributor reported inventory date:

No availability of distributors reported, please contact our sales office

VL53L4CXV9DH/1
Available at distributors

Distributor availability of VL53L4CXV9DH/1

Distributor Name
Region Stock Min. Order Third party link

Distributor reported inventory date:

No availability of distributors reported, please contact our sales office

VL53L4CXV0DH/1 Active

Budgetary Price (US$)*/Qty:
-
Package:
Packing Type:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

Part Number:

VL53L4CXV0DH/1

Operating Temperature (°C)

Min:

Max:

Operating Range Distance (m) (max):

6

Package size (mm):

4.4 x 2.4 x 1

Distributor Name

Distributor reported inventory date:

VL53L4CXV9DH/1 Active

Budgetary Price (US$)*/Qty:
-
Package:
Packing Type:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

Part Number:

VL53L4CXV9DH/1

Operating Temperature (°C)

Min:

Max:

Operating Range Distance (m) (max):

6

Package size (mm):

4.4 x 2.4 x 1
