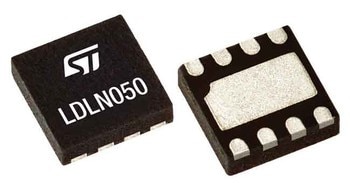

LDLN050：500mAの高性能低ドロップアウト･リニア･レギュレータ
Designed to minimize intrinsic noise for a wide variety of applications, the LDLN050, fast start-up LDO maintains the expected output voltage with high precision.
With a very low-resistance pass element (PMOS) that is very fast, even during turn-on, this 500 mA LDO regulator can be used to supply noise-sensitive circuits such as sensors, MCUs and wireless ICs in industrial applications.
Its low current consumption makes the LDLN050 ideal for battery-supplied applications and can make a big difference in prolonging a device's battery life.
Key features
- Input voltage range: 2.7 to 6.5 V
- Very low output voltage noise: 13 µVRMS/VOUT
- Low quiescent current: 48 µA (typical)
- 500 mA guaranteed output current
- Ambient operating temperature range: -40 to 125°C
- Very low dropout
- Stable with low ESR capacitor: 2 µF (minimum)
- DFN8 (3 x 3 mm) package
Applications
Industrial applications
Wireless communication
Low noise POL
