FP-ATR-SIGFOX1

Active

STM32Cube function pack for IoT tracker node with Sigfox™ connectivity, Bluetooth connectivity and sensors

Get Software Download databrief
Overview
Sample & Buy
Solutions
Documentation
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase
  • FP-ATR-SIGFOX1 is an STM32Cube function pack which lets you read data from environmental and GNSS sensors and send collected data via Sigfox connectivity.

    Message sending is triggered via user button, timer event, threshold crossing events on environmental values or movement detection by the on-board accelerometer.
    Thresholds can be set using the ST Asset Tracking app and transmitted to the firmware by Bluetooth connectivity.
    The package implements low power profiles and related transitions to ensure long battery autonomy.
    This software, together with the suggested combination of STM32 and ST devices, is intended particularly to develop asset tracking applications. In addition to GNSS geolocation, low-energy device geolocation is provided by the Sigfox infrastructure.

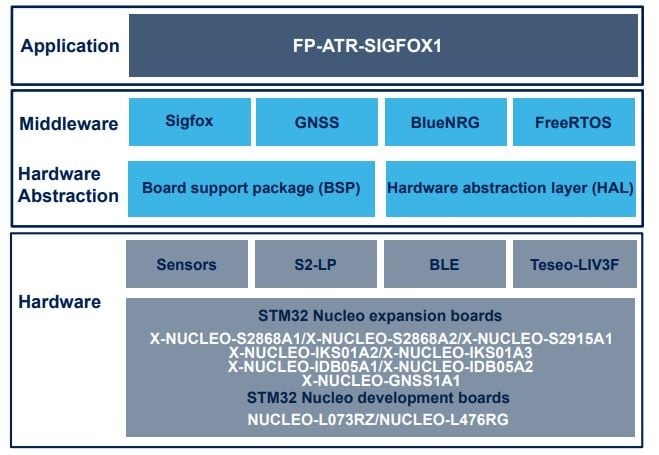

    The software runs on the STM32 microcontroller and includes drivers for the S2-LP ultra-low power RF transceiver, the Bluetooth Low Energy module, the motion, environmental and GNSS sensors.

    Key Features

    • Complete firmware to connect an IoT node to a Sigfox network, sending environmental sensor and GNSS positioning data
    • Drivers for the S2-LP high performance ultra-low power RF transceiver
    • Wake-up, tilt and orientation detection by the on-board accelerometer
    • Middleware library supporting Sigfox connectivity from the X-CUBE-SFXS2LP1 software package and Bluetooth connectivity from the X-CUBE-BLE1 software package
    • GNSS geolocation and low-energy device geolocation service provided by the Sigfox infrastructure
    • Compatible with ST Asset Tracking client application supporting firmware setting via Bluetooth connectivity
    • Sample implementation available for X-NUCLEO-S2868A1 or X-NUCLEO-S2868A2 and X-NUCLEO-S2915A1, X-NUCLEO-IDB05A1, X-NUCLEO-IKS01A2 or X-NUCLEO-IKS01A3 and X-NUCLEO-GNSS1A1 expansion boards connected to NUCLEO-L073RZ and NUCLEO-L476RG development boards
    • Easy portability across different MCU families, thanks to STM32Cube
    • Free, user-friendly license terms

Get Software

Latest from ST

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      X-NUCLEO-GNSS1A1

      Active

      GNSS expansion board based on Teseo-LIV3F module for STM32 Nucleo

      STM32 ODE Connect HW ST

      X-NUCLEO-IDB05A1

      NRND

      Bluetooth Low Energy expansion board based on SPBTLE-RF module for STM32 Nucleo

      STM32 ODE Connect HW ST

      X-NUCLEO-IKS01A2

      Active

      Motion MEMS and environmental sensor expansion board for STM32 Nucleo

      STM32 ODE Sense HW ST

      X-NUCLEO-IKS01A3

      Active

      Motion MEMS and environmental sensor expansion board for STM32 Nucleo

      STM32 ODE Sense HW ST

      X-NUCLEO-S2868A1

      NRND

      Sub-1 GHz 868 MHz RF expansion board based on S2-LP radio for STM32 Nucleo

      STM32 ODE Connect HW ST

      X-NUCLEO-S2868A2

      Active

      Sub-1 GHz 868 MHz RF expansion board based on S2-LP radio for STM32 Nucleo

      STM32 ODE Connect HW ST

      X-NUCLEO-S2915A1

      Active

      Sub-1 GHz 915 MHz RF expansion board based on S2-LP radio for STM32 Nucleo

      STM32 ODE Connect HW ST
      X-NUCLEO-GNSS1A1

      Description:

      GNSS expansion board based on Teseo-LIV3F module for STM32 Nucleo
      X-NUCLEO-IDB05A1

      Description:

      Bluetooth Low Energy expansion board based on SPBTLE-RF module for STM32 Nucleo
      X-NUCLEO-IKS01A2

      Description:

      Motion MEMS and environmental sensor expansion board for STM32 Nucleo
      X-NUCLEO-IKS01A3

      Description:

      Motion MEMS and environmental sensor expansion board for STM32 Nucleo
      X-NUCLEO-S2868A1

      Description:

      Sub-1 GHz 868 MHz RF expansion board based on S2-LP radio for STM32 Nucleo
      X-NUCLEO-S2868A2

      Description:

      Sub-1 GHz 868 MHz RF expansion board based on S2-LP radio for STM32 Nucleo
      X-NUCLEO-S2915A1

      Description:

      Sub-1 GHz 915 MHz RF expansion board based on S2-LP radio for STM32 Nucleo
    • Part number
      Status
      Description
      Type
      Supplier

      DSH-ASSETRACKING

      Active

      Cloud Amazon-based web application for asset tracking

      Evaluation Tool Software ST

      STAssetTracking

      Active

      ST Asset Tracking app to configure a Sigfox or BLE asset tracking node

      Evaluation Tool Software ST
      DSH-ASSETRACKING

      Description:

      Cloud Amazon-based web application for asset tracking
      STAssetTracking

      Description:

      ST Asset Tracking app to configure a Sigfox or BLE asset tracking node
    • Part number
      Status
      Description
      Type
      Supplier

      NUCLEO-L053R8

      Active

      STM32 Nucleo-64 development board with STM32L053R8 MCU, supports Arduino and ST morpho connectivity

      STM32 Nucleo Boards ST

      NUCLEO-L476RG

      Active

      STM32 Nucleo-64 development board with STM32L476RG MCU, supports Arduino and ST morpho connectivity

      STM32 Nucleo Boards ST
      NUCLEO-L053R8

      Description:

      STM32 Nucleo-64 development board with STM32L053R8 MCU, supports Arduino and ST morpho connectivity
      NUCLEO-L476RG

      Description:

      STM32 Nucleo-64 development board with STM32L476RG MCU, supports Arduino and ST morpho connectivity
