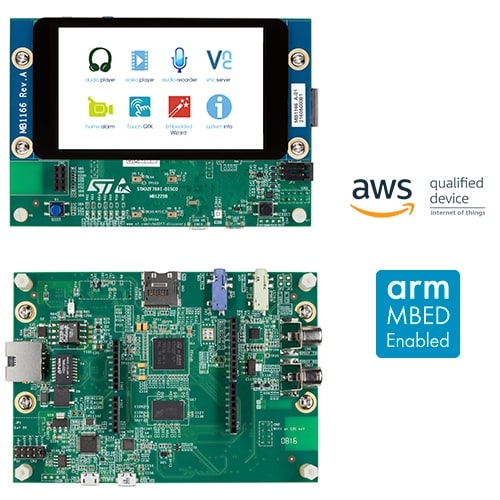

  • The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontrollers based on the ARM®Cortex®-M7 core.

    The discovery kit enables a wide diversity of applications taking benefit from audio, multi- sensor support, graphics, security, video and high-speed connectivity features.
    The Arduinoconnectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

    Key Features

    • STM32F769NIH6 microcontroller featuring 2 Mbytes of Flash memory and 512+16+4 Kbytes of RAM, in BGA216 package
    • On-board ST-LINK/V2-1 supporting USB reenumeration capability
    • USB ST-LINK functions: virtual COM port, mass storage, debug port
    • 4" capacitive touch LCD display with MIPI® DSI connector (on STM32F769I-DISCO only)
    • SAI audio codec
    • Two audio line jacks, one for input and one for output
    • Stereo speaker outputs
    • Four ST MEMS microphones on DFSDM inputs
    • Two SPDIF RCA input and output connectors
    • Two push-buttons (user and reset)
    • 512-Mbit Quad-SPI Flash memory
    • 128-Mbit SDRAM
    • Connector for microSD card
    • Wi-Fi or Ext-EEP daughterboard connector
    • USB OTG HS with Micro-AB connector
    • Ethernet connector compliant with IEEE-802.3-2002
    • Five power supply options:
      • ST LINK/V2-1
      • USB HS connector
      • 5 V from RJ45 (Power Over Ethernet)
      • 5 V from Arduinoor external connector
      • USB charger
    • Power Over Ethernet based on IEEE 802.3af (Powered Device, 48 V to 5 V, 3 W)
    • Power supply output for external applications: 3.3 V or 5 V
    • ArduinoUno V3 connectors
    • Comprehensive free software including a variety of examples, part of the STM32Cube package
    • Supported by a wide choice of integrated development environments
