Stepper motor driver mounting the L6474 in high power PowerSO package

Download databrief

This product is in stock in our e-store

Sample and buy
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

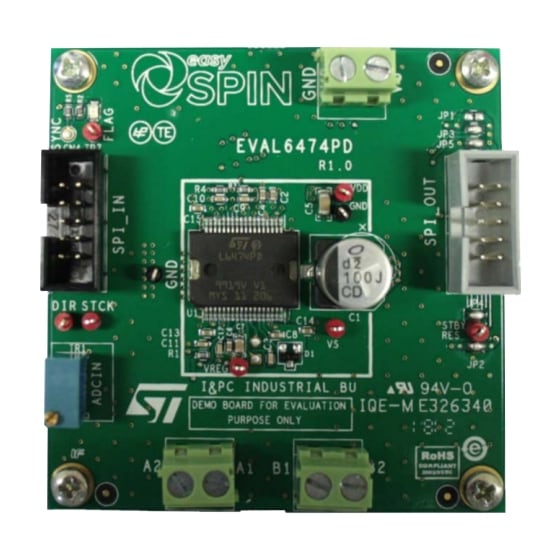

  • The EVAL6474PD demonstration board is a microstepping motor driver. In combination with the STEVAL-PCC009V2 communication board and SPIN evaluation software, the board allows the user to investigate all the features of the L6474 device.

    The 4-layer layout and the PowerSO package allow the highest thermal performance to be obtained.
    The EVAL6474PD supports the daisy chain configuration making it suitable for the evaluation of the L6474 in multi motor applications.

    Key Features

    • Voltage range from 8 V to 45 V
    • Phase current up to 3 Ar.m.s.
    • SPI with daisy chain feature
    • Socket for external resonator or crystal
    • FLAG LED indicator
    • Suitable for use in combination with STEVAL-PCC009V2
