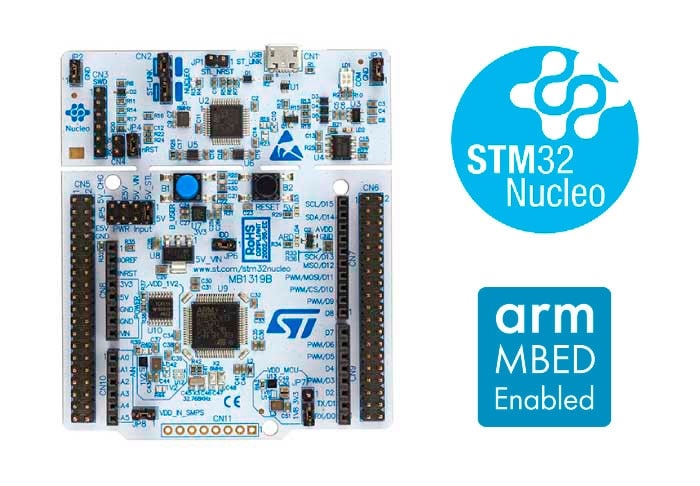

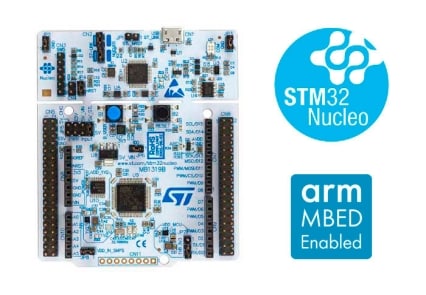

STM32 Nucleo-64 development board with STM32L433RC MCU, SMPS, supports Arduino, ST Zio and morpho connectivity

Download databrief

This product is in stock in our e-store

Sample and buy
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products
  • The STM32 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontrollers, choosing from various combinations of performance, power consumption and features. For the compatible boards, the SMPS significantly reduces power consumption in Run mode.

    The Arduino™ Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
    The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.
    The STM32 Nucleo-64 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to the Arm® Mbed™ online resources at http://mbed.org.

    Key Features

    STM32 microcontroller in LQFP64 package


    External SMPS to generate Vcore logic supply (only available on '-P' suffixed boards)


    1 user LED shared with Arduino™


    1 user and 1 reset push-buttons


    32.768 kHz LSE crystal oscillator


    Board expansion connectors:
    • Arduino™ Uno V3
    • ST morpho extension pin headers for full access to all STM32 I/Os
    • External SMPS experimentation dedicated connector (only available on '-P' suffixed boards)
    Flexible power-supply options: ST-LINK USB VBUS or external sources


    On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability. Three different interfaces supported on USB: mass storage, Virtual COM port and debug port


    Comprehensive free software libraries and examples available with the STM32Cube MCU Package


    Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs, Arm® Mbed™


    Arm® Mbed Enabled™ compliant (only for some Nucleo part numbers)

Sample & Buy

Part Number
Marketing Status
Budgetary Price (US$)*
Quantity
Specific features
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
NUCLEO-L433RC-P
Active
15.0 1 - 3A991A2 - Check Availability

Distributor availability ofNUCLEO-L433RC-P

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 22 1 Order Now
RS COMPONENTS EUROPE 16 1 Order Now
ARROW EUROPE 188 0 Order Now
MOUSER WORLDWIDE 231 1 Order Now

Distributor reported inventory date: 2019-03-25

Distributor Name

DIGIKEY

Stock

22

Min.Order

1

Region

WORLDWIDE Order Now

RS COMPONENTS

Stock

16

Min.Order

1

Region

EUROPE Order Now

ARROW

Stock

188

Min.Order

0

Region

EUROPE Order Now

MOUSER

Stock

231

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-03-25

Buy direct

NUCLEO-L433RC-P

Marketing Status

Active

Unit Price (US$)

15

Unit Price (US$)

15.0*

Distributor availability ofNUCLEO-L433RC-P

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 22 1 Order Now
RS COMPONENTS EUROPE 16 1 Order Now
ARROW EUROPE 188 0 Order Now
MOUSER WORLDWIDE 231 1 Order Now

Distributor reported inventory date: 2019-03-25

Distributor Name

DIGIKEY

Stock

22

Min.Order

1

Region

WORLDWIDE Order Now

RS COMPONENTS

Stock

16

Min.Order

1

Region

EUROPE Order Now

ARROW

Stock

188

Min.Order

0

Region

EUROPE Order Now

MOUSER

Stock

231

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-03-25

Quantity

1

Specific features

-

ECCN (US)

3A991A2

Country of Origin

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
