Product overview
Description

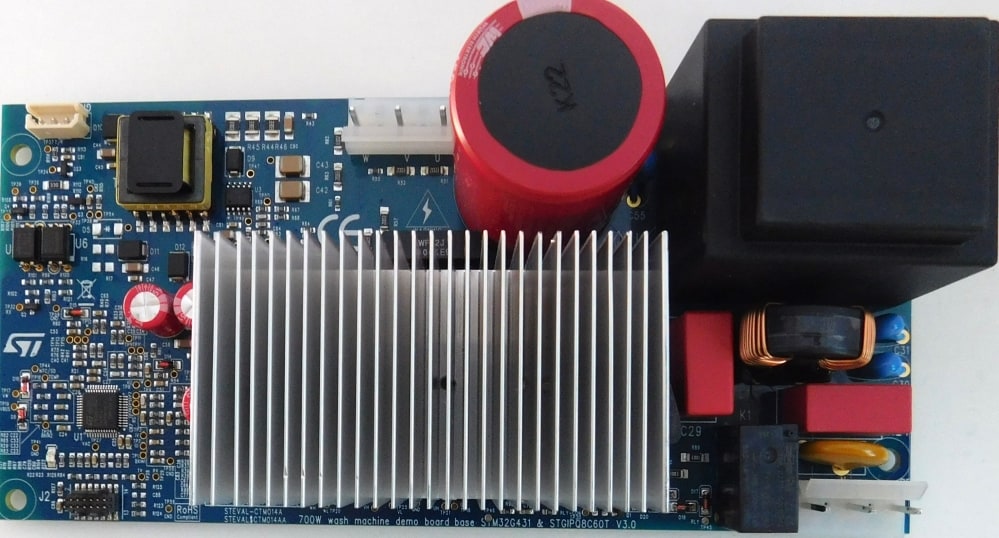

The STEVAL-CTM014A has been designed to drive a 3-phase brushless DC motor up to 700 W typically of a washing machine appliance.
The circuit is composed of four parts: the control part, the compressor drive part, the auxiliary power supply circuit, and the communication circuit.
The control part uses STM32G431CB as the main control chip, which is mainly used to control motors. It also includes: current, voltage, temperature sampling, the realization of communication, overcurrent protection, over voltage protection, over temperature protection.
The compressor drive part includes a three-phase inverter circuit, lower bridge current sampling of IPM (current sampling is realized by STM32G431CB internal integrated operational amplifier).
The three-phase inverter bridge adopts STGIPQ8C60T-HZ intelligent power module. The STGIPQ8C60T-HZ includes six IGBTs and gate drive circuits, as well as NTC temperature sampling and overcurrent comparison circuits.
The auxiliary power supply circuit includes: transformer, switching power supply controller, power switch tube, rectifier diode, etc.
The VIPER122 integrates a switching power supply control chip and power MOSFET, and also has short-circuit protection functions. Mentioned functions simplify the design of the power supply and reduce the size of the power supply.
About the communication circuit, the STEVAL-CTM014A designs a single-line half-duplex serial communication circuit with isolation, this allows convenient communication with the washing machine control panel.
-
All features
- Motor control solution for a 3-Phase BLDC up to 700 W
- Compliant with new STM32 ZEST software algorithm
- Input voltage: AC 230 V / 50 Hz
- Inverter switch frequency: 16 kHz
- DC bus overvoltage protection
- Overcurrent protection in the intelligent power module (IPM)
- Over temperature protection in the IPM
- Three-shunt current sensing
- Back electromotive force sampling of motor
- STLINK-V3 connection for debug and configuration
- Isolated one-wire half-duplex serial communication
- Control stage based on STM32G431 to perform motor control algorithms, current, voltage, and temperature sampling
- Power stage based on the STGIPQ8C60T-HZ IPM
- NTC (UL 1434 CA 2 and 4)
- UL recognition: UL 1557, file E81734
