Product overview
Description

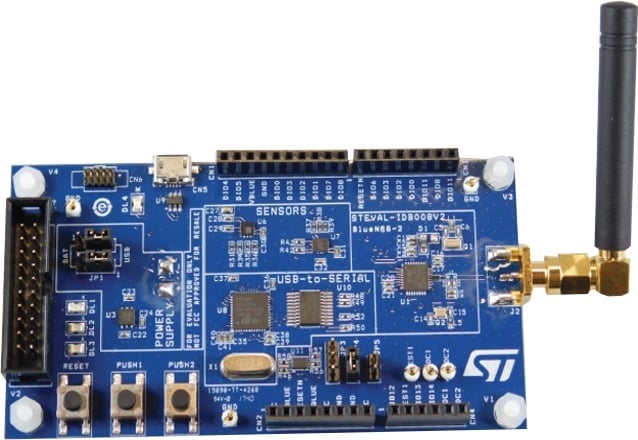

The STEVAL-IDB008V2 evaluation platform is based on the BlueNRG-2, low power Bluetooth® smart system on chip with 256 KB Flash, 24 KB RAM, compliant with the Bluetooth® SMART v5.0 specification, supporting master, slave and simultaneous master-and-slave roles and the Bluetooth low energy extended data length feature. The STEVAL-IDB008V2 also provides a set of hardware resources for implementing a wide range of application scenarios: sensor data (accelerometer, pressure and temperature sensor), remote control (buttons and LEDs) and debug message management through USB virtual COM. Three power options are available (USB only, battery only, and external power supply plus USB) for high application development and testing flexibility.
-
All features
- Bluetooth® SMART board based on the BlueNRG-2 Bluetooth low energy system on chip
- Associated BlueNRG-2 development kit SW package including firmware and documentation
- Up to +8 dBm available output power (at antenna connector)
- Excellent receiver sensitivity (-88 dBm)
- Very low power consumption: 7.7 mA RX and 8.2 mA TX at +0 dBm
- Bluetooth® SMART v5.0 compliant, supports master, slave, simultaneous master-and-slave roles and Bluetooth low energy extended data length feature
- New integrated balun BALF-NRG-02D3 which integrates a matching network and harmonics filter
- SMA connector for antenna or measuring equipment
- 3 user LEDs
- 2 user buttons
- 3D digital accelerometer and 3D digital gyroscope
- MEMS pressure sensor with embedded temperature sensor
- RoHS compliant
You might also like...
All tools & software
All resources
| Resource title | Version | Latest update |
|---|
Product Specifications (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 3.0 | 19 Feb 2018 | 19 Feb 2018 |
User Manuals (3)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 3.2 | 09 Apr 2021 | 09 Apr 2021 | ||
| 13.0 | 04 May 2021 | 04 May 2021 | ||
| 6.0 | 25 Mar 2019 | 25 Mar 2019 |
Evaluation Board Terms of Use (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.7 | 28 Apr 2021 | 28 Apr 2021 |
All resources
| Resource title | Version | Latest update |
|---|
Board Manufacturing Specifications (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| ZIP | 1.0 | 26 Jan 2018 | 26 Jan 2018 |
Bill of Materials (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.0 | 26 Jan 2018 | 26 Jan 2018 |
Schematic Pack (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 2.0 | 09 Mar 2018 | 09 Mar 2018 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | WEEE Compliant | Material Declaration** |
|---|---|---|---|---|---|---|
| STEVAL-IDB008V2 | Active | CARD | Industrial | Ecopack2 | - | |
STEVAL-IDB008V2
Package:
CARDMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
Sample & Buy
| Part Number | Order from Distributors | Order from ST | Core Product | Marketing Status | Supplier | ECCN (US) | ECCN (EU) | Country of Origin | Budgetary Price (US$)*/Qty | |
|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-IDB008V2 | 5 distributors | Buy Direct | BlueNRG-2 | Active | ST | 5A002A2 | 5A002A2 | ITALY | 71.0 / 1 |
(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
