Compact, low-voltage dual motor control evaluation board based on the STM32F303CC and L6230

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

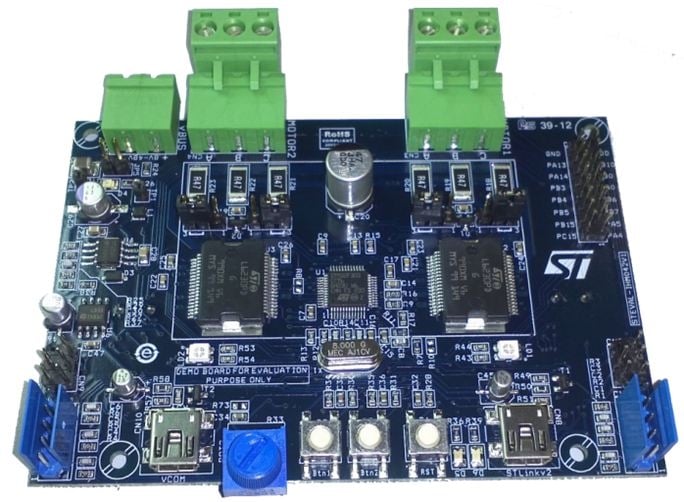

  • The STEVAL-IHM042V1 evaluation board is designed as a complete dual motor field-oriented control (FOC) demonstration platform featuring STMicroelectronics’ ARM Cortex™-M4F 32-bit core-based STM32F303CC microcontroller with floating point support and two fully integrated DMOS L6230 3-phase motor drivers.

    It is designed as an integrated evaluation environment for motor control applications in the range of 8 V - 48 V DC bus voltage (extendable up to 52 V) and nominal power up to 10 W for each motor drive. The design exploits the computational power of the STM32F303CC microcontroller with 48 KB of internal SRAM and 256 KB Flash, 4 ADCs, 2 DACs, 7 comparators, 4 operational amplifiers with programmable gains, SWD debugging, as well as the L6230 DMOS driver’s 2.8 A output peak current, non-dissipative overcurrent detection/protection, cross-conduction protection, uncommitted comparator, thermal shutdown, and undervoltage lockout.
    The STEVAL-IHM042V1 is equipped with a USB-to-serial interface, specifically for real-time data exchange implemented by an STM32F103C8 pre-programmed with the STM32 Virtual COM Port firmware.
    The ST Link in-circuit debugger and programmer is embedded in the board, allowing the user to program and debug the STM32F303CC microcontroller directly with a USB cable using a compatible toolset.

    Key Features

    • Highly compact dual 3-phase motor control design
    • Two L6230 monolithic power stages in a PowerSO package, featuring overcurrent and thermal protection
    • STMicroelectronics’ ARMTM Cortex-M4F core-based STM32F303CC microcontroller capable of simultaneous driving field-oriented control of two PMSM motors
    • Sensored or sensorless vector control (FOC)
    • Input voltage from 8 V to 48 V
    • Up to 10 W continuous for each motor
    • 3- or 1-shunt current sensing topology for each drive easily selectable through jumpers
    • On-board STLink for STM32F303CC programming
    • USB-to-serial interface for real-time control via ST MC Workbench
    • RoHS compliant

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
STEVAL-IHM042V1 STM32F303CC; L6230
Active
156.0 1 3A991A2 ITALY Check Availability

Distributor availability ofSTEVAL-IHM042V1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 5 1 Order Now
MOUSER WORLDWIDE 4 1 Order Now

Distributor reported inventory date: 2019-07-19

Distributor Name

DIGIKEY

Stock

5

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

4

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-07-19

Buy now

STEVAL-IHM042V1

Core Product

STM32F303CC; L6230

Marketing Status

Active

Unit Price (US$)

156.0*

Distributor availability ofSTEVAL-IHM042V1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 5 1 Order Now
MOUSER WORLDWIDE 4 1 Order Now

Distributor reported inventory date: 2019-07-19

Distributor Name

DIGIKEY

Stock

5

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

4

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-07-19

Unit Price (US$)

156

Quantity

1

ECCN (US)

3A991A2

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

Featured Products

Recommended for you

Related Applications

Industrial Motor Control

Embedded Software

    • Part Number

      STM32 PMSM FOC Software Development Kit - MC library (UM1052)

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB1810
      Compact, low-voltage dual motor control evaluation board based on the STM32F303CC and L6230
      4.0
      415.77 KB
      PDF
      DB1810

      Compact, low-voltage dual motor control evaluation board based on the STM32F303CC and L6230

    • Description Version Size Action
      AN4903
      Generating jerk limited move profiles with the STEVAL-IHM042V1 evaluation board
      1.0
      825.83 KB
      PDF
      AN4903

      Generating jerk limited move profiles with the STEVAL-IHM042V1 evaluation board

    • Description Version Size Action
      UM1605
      STEVAL-IHM042V1: low voltage dual motor control board based on the STM32F303 MCU and L6230 monolithic driver
      2.0
      2.41 MB
      PDF
      UM1605

      STEVAL-IHM042V1: low voltage dual motor control board based on the STM32F303 MCU and L6230 monolithic driver

Hardware Resources

    • Description Version Size Action
      STEVAL-IHM042V1 gerber files 1.0
      433.45 KB
      ZIP

      STEVAL-IHM042V1 gerber files

    • Description Version Size Action
      STEVAL-IHM042V1 BOM 2.0
      164.07 KB
      PDF

      STEVAL-IHM042V1 BOM

    • Description Version Size Action
      STEVAL-IHM042V1 schematics 3.0
      232 KB
      PDF

      STEVAL-IHM042V1 schematics

Publications and Collaterals

    • Description Version Size Action
      X-NUCLEO expansion boards motor control - Selection guide 1.2
      263.59 KB
      PDF

      X-NUCLEO expansion boards motor control - Selection guide

    • Description Version Size Action
      Products and solutions for Smart industry 3.0
      2.99 MB
      PDF

      Products and solutions for Smart industry

Legal

    • Description Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-IHM042V1
Active
CARD Industrial Ecopack2 -

STEVAL-IHM042V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
