VD66GY

Active
Design Win Education

Compact & high-sensitivity 1.5 megapixel color global shutter image sensor

Download datasheet

Product overview

Description

The VD66GY is part of a brand-new complete series of image sensors developed by STMicroelectronics for professional and consumer vision applications. Leveraging state-of-the-art technologies developed by STMicroelectronics own foundry, the sensor provides outstanding performance enabling to capture bright and sharp color images. With its clever design and complete toolbox of on-chip functions, it is the ideal solution for the design of tomorrow’s smart and optimized systems.

  • All features

    • Cutting-edge performance of ST proprietary pixel:
      • BSI structure provides superior QE, MTF, and angular response.
      • Full DTI technology further increases sensitivity and sharpness.
      • Excellent response across the whole color spectrum.
      • Proprietary technology from ST foundry in France, ensuring safe supply.
    • Easy integration into your system:

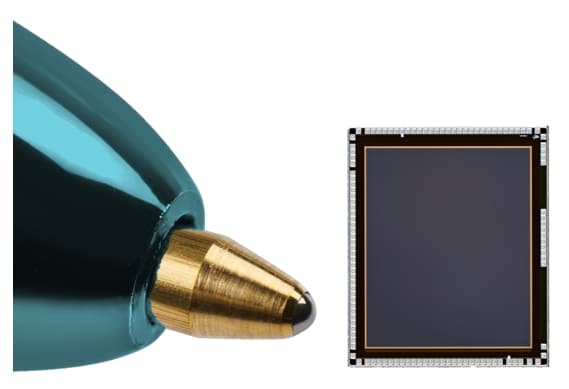

      • Ultracompact die with centered design to minimize your system size.
      • Small optical format: 4.6 mm (1/4'') at full resolution and 3.7 mm (1/5'') with 1 MP crop.
      • Low power, ideal for battery-powered devices.
      • Robust design and image quality in temperature.
    • A complete toolbox of in-sensor features:
      • Stunning images with in-sensor autoexposure and various corrections.
      • Multiple features to optimize data size and frame rates such as crop, binning, and programmable sequences.
      • 8 GPIOs enabling extra controls such as trigger or LED synchronization.
    • Seamless connection to embedded processing platforms:
      • 1 or 2 lanes MIPI CSI-2 interface enabling straight connection to entry-level cost-effective processing platforms.
      • Start immediately your development with our turnkey sensor boards, modules, and drivers for the VD66GY image sensor.
    • The VD66GY color image sensor is also available in monochrome (VD56G3) and RGB-NIR versions (VD16GZ).

You might also like...

EDA Symbols, Footprints and 3D Models

STMicroelectronics - VD66GY

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

Symbols

Footprints

Footprints

3D model

3D models

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade Material Declaration**
VD66GYCCA/RW
Active
DIE Industrial N/A

VD66GYCCA/RW

Package:

DIE

Material Declaration**:

PDF XML

Marketing Status

Active

Package

DIE

Grade

Industrial

RoHS Compliance Grade

N/A

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
