Product overview
Key Benefits
Ultracompact design
Small LGA package (12.8 x 10.6 mm) ideal for space-constrained IoT applications.
Ultralow-power mode for long battery life
Optimized for ultralow-power consumption for years of maintenance-free operation
Versatile connectivity & Remote SIM Provisioning
Supports NB-IoT Cat NB2 with worldwide multi-band coverage, optional embedded SIM, GNSS, Wi-Fi positioning, Wireless M-Bus fallback, and compliant with SGP.32 standard for secure remote SIM provisioning.
Description

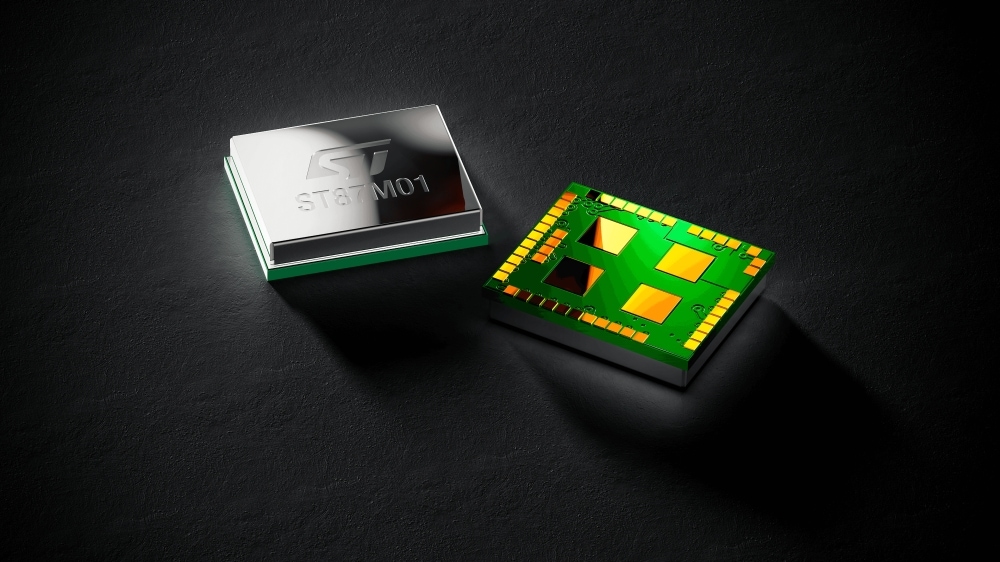

The ST87M01is a high-performance, fully programmable, ultra-compact, and low-power LTE Cat NB2 NB-IoT industrial module series, offering comprehensive worldwide band coverage and advanced security features. Designed to meet diverse application requirements, the ST87M01 family provides multiple configurable options including GNSS, Wi-Fi positioning, embedded SIM, and Wireless M-Bus (WBUS).
The integrated GNSS functionality enables precise location tracking via GPS constellation, while the Wi-Fi positioning feature offers fast, low-power location services using nearby 802.11b networks in conjunction with third-party geocoding providers. Wireless M-Bus serves as a reliable backup communication channel in environments with limited cellular network coverage. The embedded SIM option optimizes board space and reduces BOM complexity.
Supporting a wide range of IoT protocols, the ST87M01 modules include PDU SMS services and internet protocols such as TCP/IP, TLS/DTLS, CoAP, LwM2M, MQTT, and HTTP/HTTPS, enabling versatile connectivity and application scenarios.
The ultra-compact LGA package (10.6 mm x 12.8 mm, 51 pins) makes the ST87M01 family an ideal choice for space-constrained designs, facilitating device miniaturization without compromising performance.
-
All features
- LTE, category NB2, release 15
- Worldwide regional band coverage
- Single-tone/multi-tone/extended TBS and 2 HARQ
- Up to DL: 127 kbps, UL: 159 kbps
- eDRX and PSM support
- Ultralow power mode 1.2 uA typical (0.5 uA typical in power-off)
- Ultra-compact size, weight: 660mg
- Embedded IoT internet protocols
- Differential FOTA support
- Up to +23 dBm power-out
- Multiple I/F and GPIO
- GCF certified
- RED certified
- RED-DA certified
- Optional embedded GSMA-compliant SIM
- Optional GNSS and A-GNSS
- Optional wireless M-Bus mode
- Optional Wi-Fi positioning for IEEE 802.11b hot spots
More from the product line
You might also like...
Featured Videos
Ultra-compact NB-IoT module with optional GNSS, Wi-Fi positioning, Wireless M-BUS & embedded SIM.
Recommended for you
Recommended Tools & Software
All tools & software
All resources
| Resource title | Version | Latest update |
|---|
Product Specifications (1)
| Resource title | Version | Latest update | |||
|---|---|---|---|---|---|
| 3.0 | 14 Oct 2025 | 14 Oct 2025 |
Application Notes (1)
| Resource title | Version | Latest update | |||
|---|---|---|---|---|---|
| 1.0 | 08 Sep 2025 | 08 Sep 2025 |
User Manuals (1)
| Resource title | Version | Latest update | |||
|---|---|---|---|---|---|
| 1.0 | 07 Oct 2024 | 07 Oct 2024 |
Flyers (3)
| Resource title | Version | Latest update | |||
|---|---|---|---|---|---|
| 1.0 | 14 Nov 2025 | 14 Nov 2025 | |||
| 1.0 | 23 Oct 2025 | 23 Oct 2025 | |||
| 1.0 | 31 Oct 2025 | 31 Oct 2025 |
EDA Symbols, Footprints and 3D Models
The STMicroelectronics team - ST87M01
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| ST87M01-1000 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1001 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1100 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1101 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1111 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1301 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 | |
| ST87M01-1400 | Active | SMD MODULE | Industrial | Ecopack2 | 15 | 2025-01-01T00:00:00.000+01:00 |
ST87M01-1001
Package:
SMD MODULEMaterial Declaration**:
ST87M01-1111
Package:
SMD MODULEMaterial Declaration**:
PDFST87M01-1301
Package:
SMD MODULEMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | Marketing Status | Budgetary Price (US$)*/Qty | Order from ST | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||||||
| ST87M01-1101 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1001 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1111 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1000 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1301 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1100 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
| ST87M01-1400 | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
ST87M01-1101 Active
ST87M01-1001 Active
ST87M01-1111 Active
ST87M01-1000 Active
ST87M01-1301 Active
ST87M01-1100 Active
ST87M01-1400 Active
(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
