Product overview
Description
The X-LINUX-IGTW1 software package is tailored for the X-STM32MP-IGTW1 expansion board, which is designed for industrial IoT gateway applications.
This package provides a comprehensive set of drivers, middleware, and application examples to facilitate the development of industrial automation and remote monitoring solutions.
The software supports communication interfaces such as I²C, UART, FDCAN, and GPIO, ensuring seamless integration with the STM32MP257F-DK development kit.
The X-LINUX-IGTW1 includes preconfigured settings for the board's hardware components, enabling quick and efficient development.

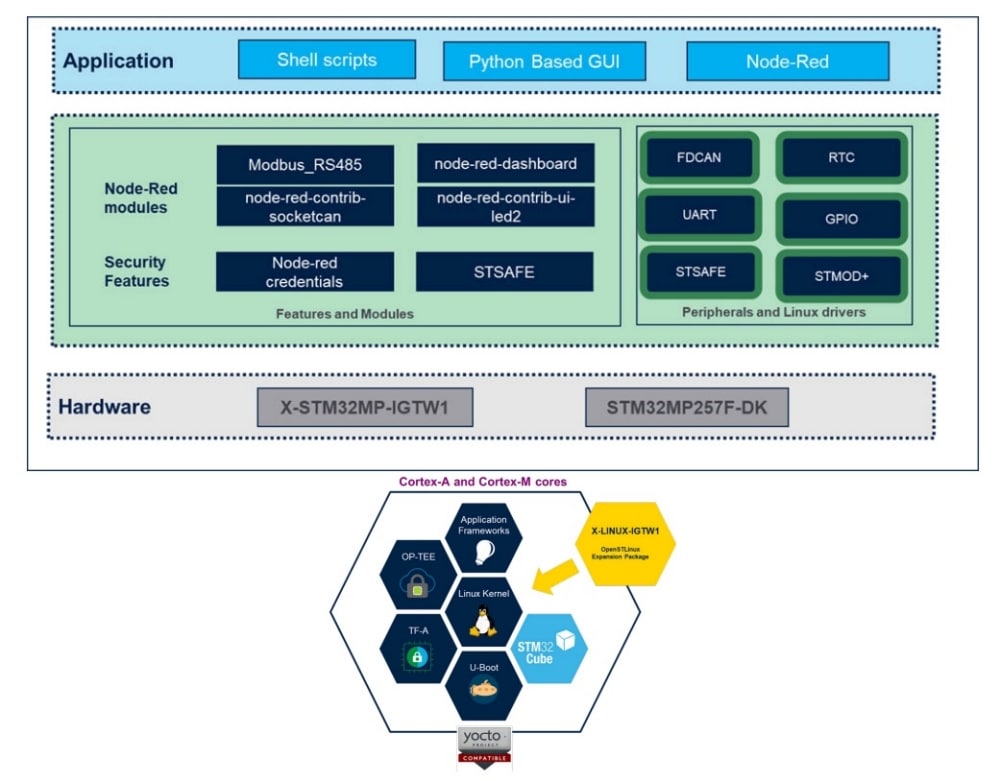

The software package includes kernel and device tree patches and two user-space applications. One GUI application is for testing all peripherals.
The second application is based on Node-RED, which is a browser-based editor that allows users to drag and drop nodes to create flows. These flows can be deployed with a single click, making it highly user-friendly. One sample flow is shared in each release.
Sample Node-RED application is based on CAN bus and RS-485 Modbus (RTU), commonly used protocols in industrial automation.
-
All features
- OpenSTLinux industrial gateway extension for STM32MP2 microprocessors
- Preconfigured drivers for ST4E1240 high-speed RS-485 transceiver and ST3232C RS-232 transceiver
- Integrated support for M41T83 real-time clock (RTC) with battery backup
- Secure communication enabled by STSAFE-A110 for authentication and cryptographic services
- Preconfigured GPIO and driver setup using M24C32-R EEPROM
- Compatibility with the STM32MP257F-DK development kit
- Support for the latest OpenSTLinux ecosystem
- Support for industrial communication protocols CAN bus and modbus RTU
- User interface integration with signalizing LEDs and switches
- Compatible with the Yocto Project® build system
