Product overview

Description

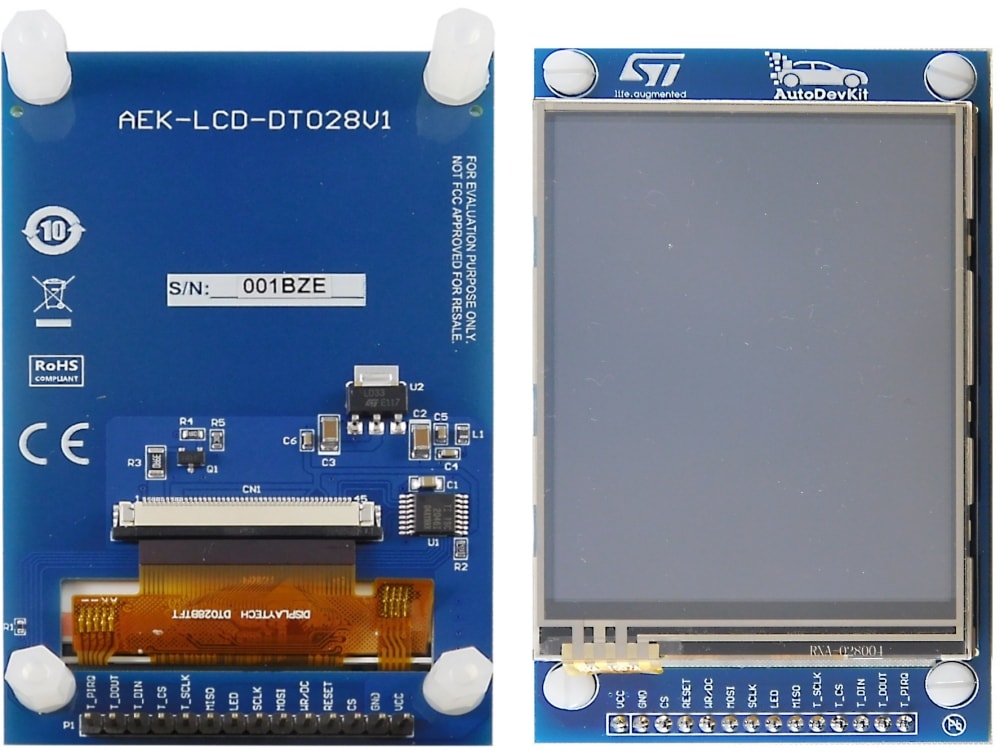

The AEK-LCD-DT028V1 evaluation board hosts a 2.8” LCD display with resistive touch for a graphical user interface (GUI) which interacts with SPC5 MCU discovery boards. The TFT SPI LCD display has a resolution of 240x320 pixels and features resistive touch managed by an on-board SPI touch screen controller.
  • All features

    • 2.8 "(240x320 pixel) TFT SPI LCD with resistive touch managed by an SPI touch screen controller available on the board
    • PCB header connector interfacing with SPC5 MCU discovery boards
    • 3.3V LDO voltage regulator for I/O signals
    • 53 mm x 87 mm
    • WEEE and RoHS compliant
