Quad-channel high-side drivers with current sense analog feedback for automotive applications

Smart switches with embedded protection and low voltage operation in PowerSSO-16 package

Based on ST's proprietary VIPower M0-9 technology, these state-of-the-art automotive high-side switches are designed to drive 12 V grounded loads through a 3 V and 5 V CMOS-compatible interface. In addition to embedded protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown with configurable latch-off, these smart devices include a dedicated multifunction multiplexed analog output pin for advanced diagnostics.

VNQ9025AJ and VNQ9080AJ are tailored for different loads, featuring typical on-resistance values equal to 25 mΩ, 86 mΩ, respectively.

VNQ9025AJ quad-channel smart high-side driver
25 mΩ Typ. on-state resistance (per channel)
VNQ9080AJ  quad-channel smart high-side driver
86 mΩ Typ. on-state resistance (per channel)

Key features

  • AEC-Q100 qualified
  • Low voltage operation for deep cold cranking applications (compliant with LV124, revision 2013)
  • Very low standby current
  • Extended current sense precision
  • Advanced protection features:
    • Undervoltage shutdown
    • Overvoltage clamp
    • Load current limitation
    • Self limiting of fast thermal transients
    • Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin
    • Loss of ground and loss of VCC
    • Reverse battery through self turn-on for the VNQ9025AJ
    • Reverse battery with external components for the VNQ9080AJ
    • Electrostatic discharge protection


Application examples

Body Control Modules (BCM)


Heating systems
Power distribution

Recommended resources


TwisterSIM: dynamic electro-thermal simulator for VIPower devices

A unique electro-thermal simulator that shortens the design cycle by enabling complex engineering evaluation. TwisterSIM includes an interactive selector for finding the suitable HSDs in few clicks based on load compatibility; fault condition impact analysis; diagnostic behavior analysis dynamic thermal performance, and more.

EV-VNQ9025AJ and EV-VNQ9080AJ boards
Evaluation boards

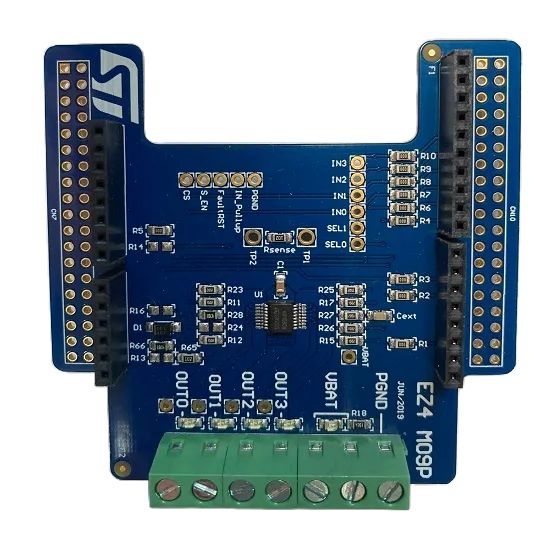

These EV-VNQ9025AJ and EV-VNQ9080AJ evaluation boards provide an easy way to connect the VNQ9025AJ and VNQ9080AJ quad-channel high-side drivers into an existing system. These ready-to-use boards let designers directly connect the load, power supply and microcontroller without any additional effort for external component design and connection.



Scalable, feature-rich automotive high-side drivers leveraging advanced power technology
Press announcement

Targeting automotive applications including safety, comfort, and powertrain, body electronics, infotainment, and driver assistance systems, these high-side drivers are ideal for deep cold cranking applications with heavy loads such as engine starters and ensure reliable operation even in extreme winter conditions.

VIPower M0-9: the latest generation of protected high-side drivers

Discover the key features and benefits of our latest generation of protected high-side drivers. Our brochure will help you find the best solution for your application.
