Product overview
Key Benefits
Capture both color and infrared
Simultaneous color (RGB) and infrared (IR) capture in a single frame for synchronized multispectral imaging, enabling daylight to nighttime operation, biometrics, or agriculture.
Embedded vision ready
Compact and power-efficient design with advanced 3D-stacking and MIPI CSI-2 interface, ideal for ergonomic, battery-powered camera devices on embedded processors.
Quick and easy development
Jumpstart your project with comprehensive evaluation hardware (promodules, S-Board, and more) and free software tools, including evaluation software, SDK, and drivers.
Description
The VD16GZ is part of the new generation of image sensors developed by STMicroelectronics for professional and consumer vision applications. Leveraging state-of-the-art technologies developed by ST's own foundry, the sensor provides outstanding performance in color and near infrared. With its RGB-NIR pattern, the VD16GZ is perfectly suited for multispectral imaging and for the many applications requiring the simultaneous capture of both color and near infrared images.
-
All features
- Cutting-edge performance of ST proprietary pixel:
- BSI structure: Provides superior QE, MTF, and angular response.
- Full DTI technology: Further increases sensitivity and sharpness.
- Versatile imaging: Benefits both color and NIR (850 nm, 940 nm) image capture.
- Reliable supply: Proprietary technology from ST foundry in France, ensures a safe supply.
- Easy integration into your system:

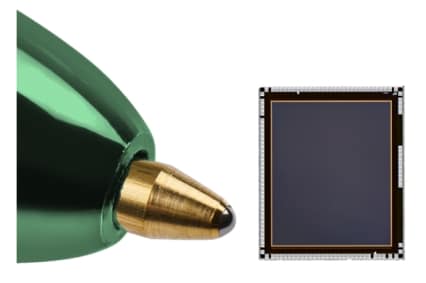

- Ultracompact die: Centered design to minimize your system size.
- Small optical format: 4.6 mm (1/4'') at full resolution and 3.7 mm (1/5'') with 1 MP crop.
- Low-power consumption: Ideal for battery-powered devices.
- Robust design: Ensures high image quality at various temperatures.
- A complete toolbox of in-sensor features:
- Stunning images: Achieved with in-sensor AE and various corrections.
- Data optimization: Multiple features to optimize data size and frame rates such as crop, and programmable sequences.
- Enhanced controls: 8 GPIOs enabling extra controls such as trigger or LED synchronization.
- Seamless connection to embedded processing platforms:
- MIPI CSI-2 interface: 1 or 2 lanes enabling direct connection to entry-level cost-effective processing platforms.
- Turnkey solutions: Start your development immediately with our sensor boards, modules, and drivers for the VD16GZ image sensor.
- The VD16GZ color and near infrared image sensor is also available in monochrome (VD56G3) and color RGB (VD66GY) versions.
- Cutting-edge performance of ST proprietary pixel:
You might also like...
EDA Symbols, Footprints and 3D Models
STMicroelectronics - VD16GZ
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| VD16GZCCA/RW | Active | DIE | Industrial | N/A | 10 | 2024-01-01T00:00:00.000+01:00 | |
VD16GZCCA/RW
Package:
DIEMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
Sample & Buy
| Part Number | Marketing Status | Budgetary Price (US$)*/Qty | Order from ST | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | |||||||||||||
| VD16GZCCA/RW | | | distributors No availability of distributors reported, please contact our sales office | |||||||||||
VD16GZCCA/RW Active
(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
