The STM32WBA MCU series brings designers performance, efficiency, and flexibility. It embeds large memory to support both applications and connectivity activities, offering up to 2 Mbytes of flash and up to 512 Kbytes of RAM. A smart set of peripherals such as ADC, touch sensing, timers, makes this series a self-sufficient wireless application MCU.
Key benefits include:
- High data rate to ensure fast and reliable data transfer
- Multi-protocol flexibility (Bluetooth® LE*, IEEE 802.15.4 communication protocols, Zigbee®, Thread, Matter and Aliro)
- Long range capability for extended communication distance
- High output power (+10 dBm) to further increase communication range
- Low-power messaging capability to extend battery lifetime
Based on Arm® Cortex®-M33 core running at 100 MHz with TrustZone® technology, the STM32WBA series provides a high level of security, protecting data, IPs, and helping prevent hacking or device cloning.
* LE Coded, LE 2M, extended advertising, LE Audio, direction finding
Discover our product types
| STM32WBA2x | STM32WBA5x | STM32WBA6x | |
| CPU | Cortex®-M33 @ 64MHz | Cortex®-M33 @ 100MHz | Cortex®-M33 @ 100MHz |
| Flash size | 512 kB | Up to 1 MB | Up to 2 MB |
| RAM size | 96 kB | Up to 128 kB | Up to 512 kB |
| Protocols | Bluetooth® LE Zigbee 3.0 OpenThread 1.4 | Bluetooth® LE Zigbee 3.0 OpenThread 1.4 | Bluetooth® LE Zigbee 3.0 OpenThread 1.4 Matter 1.5 |
| USB | USB2.0 Full Speed | None | USB2.0 High Speed |
| Connectivity | 1x QSPI, 1x SPI, 2x I²C, 1x UART, 1x LPUART, 1x SAI | 2x SPI, 2x I²C, 3x UART, 1x SAI | 3x SPI, 4x I²C, 4x UART, 1x SAI |
Benefits
Enhanced wireless performance
- Multiple protocols supported (Bluetooth® LE including audio, IEEE 802.15.4 communication protocols, Zigbee®, Thread and Matter)
- Best-in-class +10 dBm Tx output power
Improved efficiency
- Increase battery life with the advertising extension for efficient device communication
- Ensure fast and reliable data transfer for seamless connectivity
Advanced security
- Protect your IP and increase privacy protection based on SESIP3 and Arm PSA L3 device capability (compliant with the current regulation)
- Ready for international security regulations, including RED, CRA, and US CyberAct
Faster time-to-market
- Accelerate your time-to-market by leveraging the market-proven STM32Cube ecosystem
- Extensive documentation, RF reference designs, and specialized wiki articles
Discover our STM32WBA series comprehensive ecosystem
Discovery kits, Nucleo boards, Connectivity expansion board
.png)
STM32Cube firmware package
The STM32WBA MCU series brings designers performance, efficiency, and flexibility. It embeds large memory to support both applications and connectivity activities, offering up to 2 Mbytes of flash and up to 512 Kbytes of RAM. A smart set of peripherals such as ADC, touch sensing, timers, makes this series a self-sufficient wireless application MCU.
Key benefits include:
- High data rate to ensure fast and reliable data transfer
- Multi-protocol flexibility (Bluetooth® LE*, IEEE 802.15.4 communication protocols, Zigbee®, Thread, Matter and Aliro)
- Long range capability for extended communication distance
- High output power (+10 dBm) to further increase communication range
- Low-power messaging capability to extend battery lifetime
Based on Arm® Cortex®-M33 core running at 100 MHz with TrustZone® technology, the STM32WBA series provides a high level of security, protecting data, IPs, and helping prevent hacking or device cloning.
* LE Coded, LE 2M, extended advertising, LE Audio, direction finding

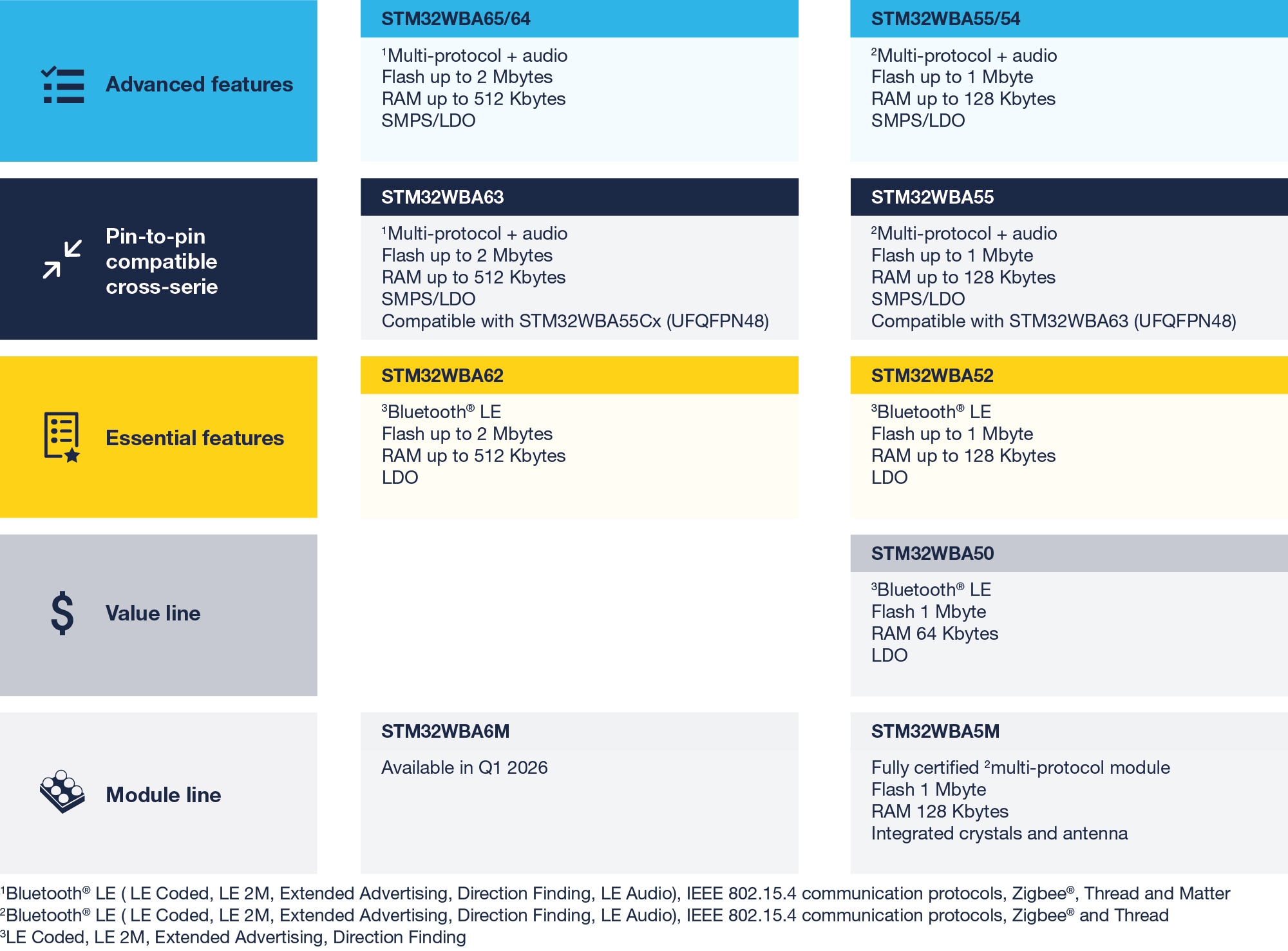

Discover our product types
| STM32WBA2x | STM32WBA5x | STM32WBA6x | |
| CPU | Cortex®-M33 @ 64MHz | Cortex®-M33 @ 100MHz | Cortex®-M33 @ 100MHz |
| Flash size | 512 kB | Up to 1 MB | Up to 2 MB |
| RAM size | 96 kB | Up to 128 kB | Up to 512 kB |
| Protocols | Bluetooth® LE Zigbee 3.0 OpenThread 1.4 | Bluetooth® LE Zigbee 3.0 OpenThread 1.4 Aliro 1.0 | Bluetooth® LE Zigbee 3.0 OpenThread 1.4 Matter 1.5 Aliro 1.0 |
| USB | USB2.0 Full Speed | None | USB2.0 High Speed |
| Connectivity | 1x QSPI, 1x SPI, 2x I²C, 1x UART, 1x LPUART, 1x SAI | 2x SPI, 2x I²C, 3x UART, 1x SAI | 3x SPI, 4x I²C, 4x UART, 1x SAI |
Benefits
Enhanced wireless performance
- Multiple protocols supported (Bluetooth® LE including audio, IEEE 802.15.4 communication protocols, Zigbee®, Thread, Matter and Aliro)
- Best-in-class +10 dBm Tx output power
Improved efficiency
- Increase battery life with the advertising extension for efficient device communication
- Ensure fast and reliable data transfer for seamless connectivity
Advanced security
- Protect your IP and increase privacy protection based on SESIP3 and Arm PSA L3 device capability (compliant with the current regulation)
- Ready for international security regulations, including RED, CRA, and US CyberAct
Faster time-to-market
- Accelerate your time-to-market by leveraging the market-proven STM32Cube ecosystem
- Extensive documentation, RF reference designs, and specialized wiki articles
Discover our STM32WBA series comprehensive ecosystem
Discovery kits, Nucleo boards, Connectivity expansion board
STM32Cube firmware package
