The SLLIMM 2nd series is ST’s family of compact and efficient dual-in-line intelligent power modules, with optional extra features.

Based on a 3-phase inverter equipped with IGBTs or superjunction (SJ) MOSFETs, the devices feature a current capability from 8 to 35 A and a breakdown voltage of 600 V. Thanks to the full-molded and top-side cooling direct bonded copper (DBC) package options, these IPMs address low-to-medium to high-power applications.

The SLLIMM 2nd series ensures high efficiency in home appliances such as washing machines, pumps, fans, and air conditioning units as well as motor drives working at up to 20 kHz in hard-switching circuitries from 300 W to 3 kW.

The SLLIMM 2nd series offers higher performance, wider current range and additional package technology options that can further reduce the cost of the application by enabling the use of smaller heatsinks.

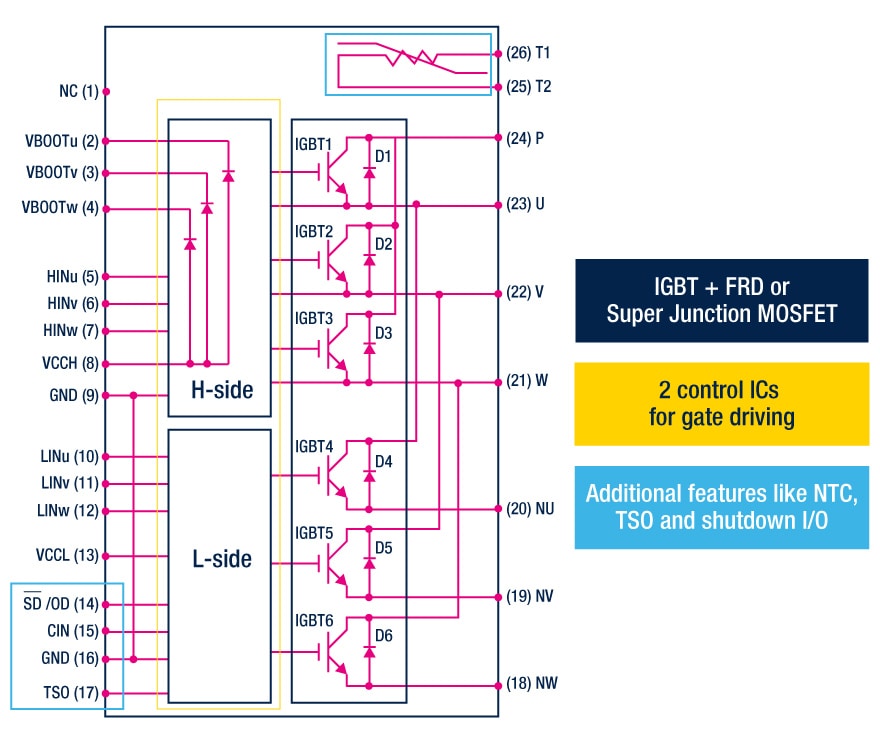

The series combines two drivers (one high-side and one low-side) and a power section based on improved trench gate field-stop IGBTs plus freewheeling diodes or N-channel superjunction MOSFETs with fast-recovery body diode. The combination increases efficiency and minimizes EMI and overall losses, ensuring higher short-circuit withstand times.

A built-in temperature sensor and/or an NTC (Negative temperature coefficient) option are available.

Applications:

The SLLIMM 2nd series IPMs show the best compromise between conduction and switching energy with outstanding robustness and EMI behavior, making the products ideal to enhance efficiency in low- and medium-power motors working up to 20 kHz in hard-switching circuitries.

Home and professional appliances
Home and professional appliances
  • Air Conditioner Window/Wall/Portable
  • Dryer
  • Multi-function food processor and blenders
  • Cordless and corded vacuum cleaners
  • Washing Machines
Home, Building and City Automation
Home, Building and City Automation
  • Commercial Indoor/Outdoor HVAC Unit
  • Central Indoor/Outdoor HVAC Unit
Industrial Tools, Motor Drives and Equipment
Industrial Tools, Motor Drives and Equipment
  • AC Motor Drives
  • Servo Motor Drives
  • Fans
  • PMSM / BLDC Motor Control
  • Pumps and Compressors

Product types:

The SLLIMM 2nd series features a breakdown voltage of 600 V and a current rating from 8 to 35 A at 25°C.

To maximize the efficiency in steady-state operation and in applications working at low load including high-end air conditioning units, the SJ-MOSFET version is the preferred choice thanks to it very low RDS(on) up to 100 mΩ and lower thermal resistance.

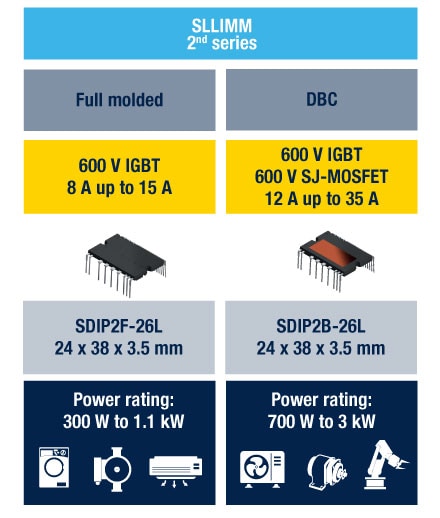

As package options, the full molded option represents a cost-effective solution for medium-power platforms, while the DBC option ensures higher power dissipation thanks to the lowest RTH value.

Discover our portfolio

Benefits

  • Low conduction losses
  • 175°C max. operating junction temperature for IGBT and 150°C for SJ MOSFET
  • Optimized driver and silicon for low EMI
  • Lowest RTH value on the DBC package versions
  • Internal bootstrap diode
  • Separate open emitter outputs
  • On-board NTC thermistor
  • Integrated temperature sensor on low-side driver
  • Comparator for fault protection
  • Shutdown input/fault output
  • UL 1557 recognized up to 2000 VRMS/min

Featured Products

SLLIMM™-nano 2nd series IPMs

Efficient systems thanks to low capacitances and gate charge

STSW-POWERSTUDIO

Dynamic electrothermal simulation software for power devices

MOSFET-based SLLIMM-nano modules

More efficient, flexible and integrated systems
